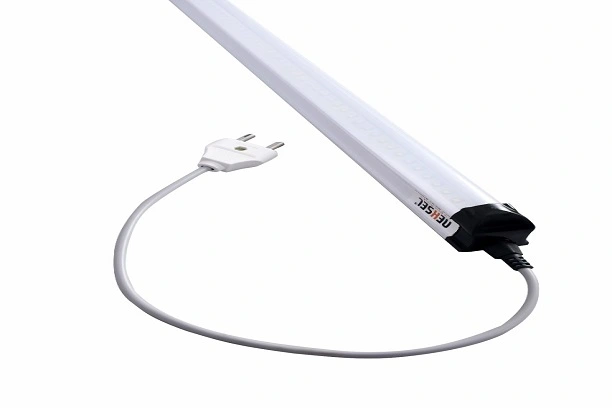

Tissue Culture Grow Light - TSGL8
Model TSGL8
Brief Description :

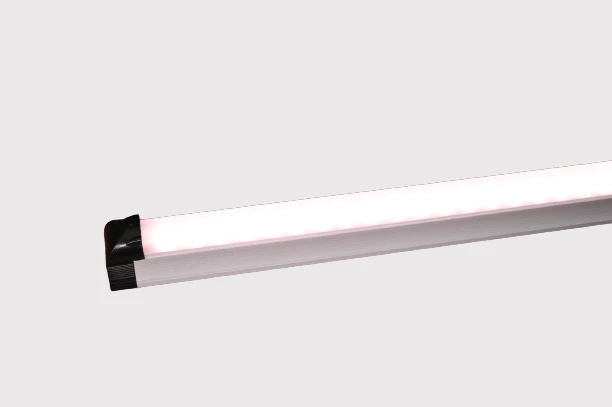

LED grow bar
i. 18w/4ft

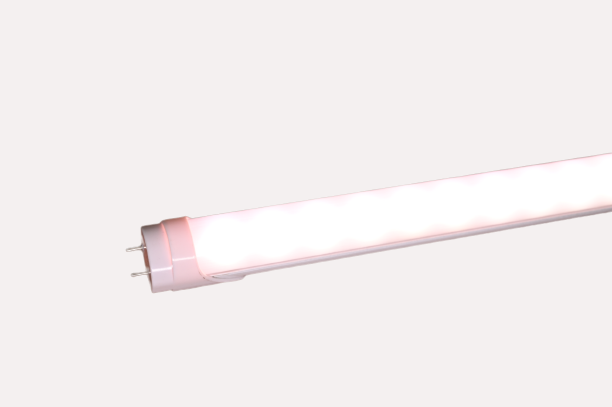

ii. 09 watt/2ft
380nm-730nm available, full spectrum; IP 58; best for commercial growing; also available in custom-tailored spectrum
#Grow Fast, High Efficiency
17w/4ft, 14 w/3ft, 09/2ft LED Grow Bar, with top LEDs, vivid new design, more energy efficient own it, you're ready to grow.
Best for commercial growers – The optimal lighting solution is different for every crop – Based on successful tests at our 1000 sq.ft testing facility, Nexsel have been developed different lamps with specific light recipes for different plants – Nexsel has 5 years+ experience in horticulture lighting – Nexsel use special horticulture grade led chips with high PPF value
The colour blend is engineered to promote healthy plants through all growth phases. Cost-efficient, reliable and safe, it runs cool and it is worth every penny.
Model :
1) TSGL8-14
2) TSGL8-18
3) TSGL8 – 09
4) TSGL8 R-18
Minimum Order :
50 pcs
Key Features :
- ▪ 1.3x more intensity (PPF 2.2 -2.4 µmol/J)

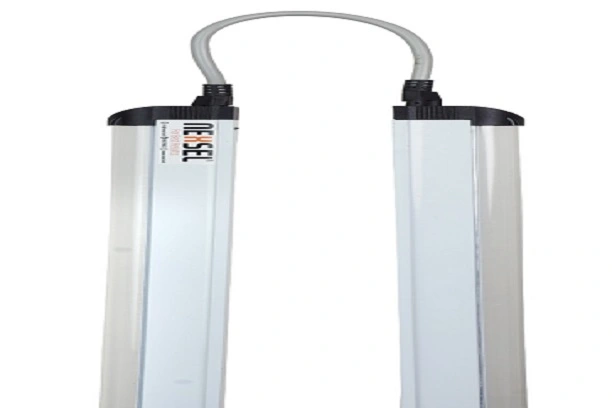

- ▪ Specially designed C3 type connectors
- ▪ Customized spectrum
- ▪ Eliminates the need for ballasts and reflectors
- ▪ Stays cool thanks to internal heat dissipation design
Key Advantages :
- ▪ More profound colour
- ▪ Proper leaf texture
- ▪ Uniform spectrum graph over all plants
- ▪ 24 months warranty
- ▪ Easy installation
Key Benefits :
- ▪ Upto 60% less electricity consumption compared with conventional lighting
- ▪ Save 80% wiring cost per layer
- ▪ Save 60-70% installation time
- ▪ Reduce upto 25% AC load
Spectrum :
Nx6.1 & Nx6.2
Certifications :
CE, RoHS
Technical Specifications
| Operating Voltage | 80-300 V |
| Power Consumption | 18/14/09 w |
| Driver Current | 300 mA |
| Weight | 300/200 gm |
| Dimensions (in mm) | 1200x35x30 / 600x35x30 |
| Operating Temperature | 0º C to 45º C |
| Light Source | 0.5 w L |
| Qty of LEDs | 56 |
| Efficiency | 0.88 |
| Power Factor | 0.98 |
| PPFD | PPFD 40 from 30 cm |
| Wavelength | 450 nm, 660 nm |
| LED Life | 50,000 Hours |
Nx6.1
| UV | Blue | Green | Red | Far Red | PAR | CCT | CRI | B:G | R:Fr | R:B |
|---|---|---|---|---|---|---|---|---|---|---|
| 0% | 16% | 27% | 56% | 1% | 30 | 4192K | 69 | 0.5 | 52 | 3.5 |
Nx6.2
| UV | Blue | Green | Red | Far Red | PAR | CCT | CRI | B:G | R:Fr | R:B |
|---|---|---|---|---|---|---|---|---|---|---|
| 0% | 15% | 30% | 54% | 1% | 68 | 4034K | 80 | 0.5 | 49 | 3.5 |

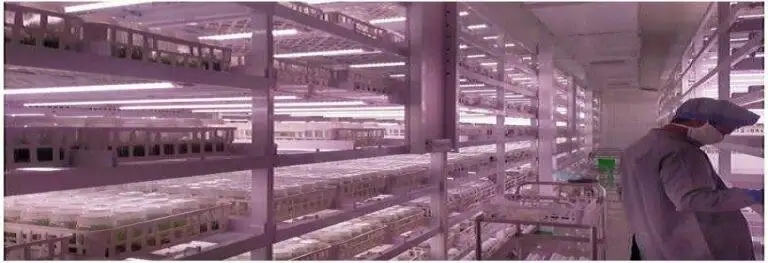

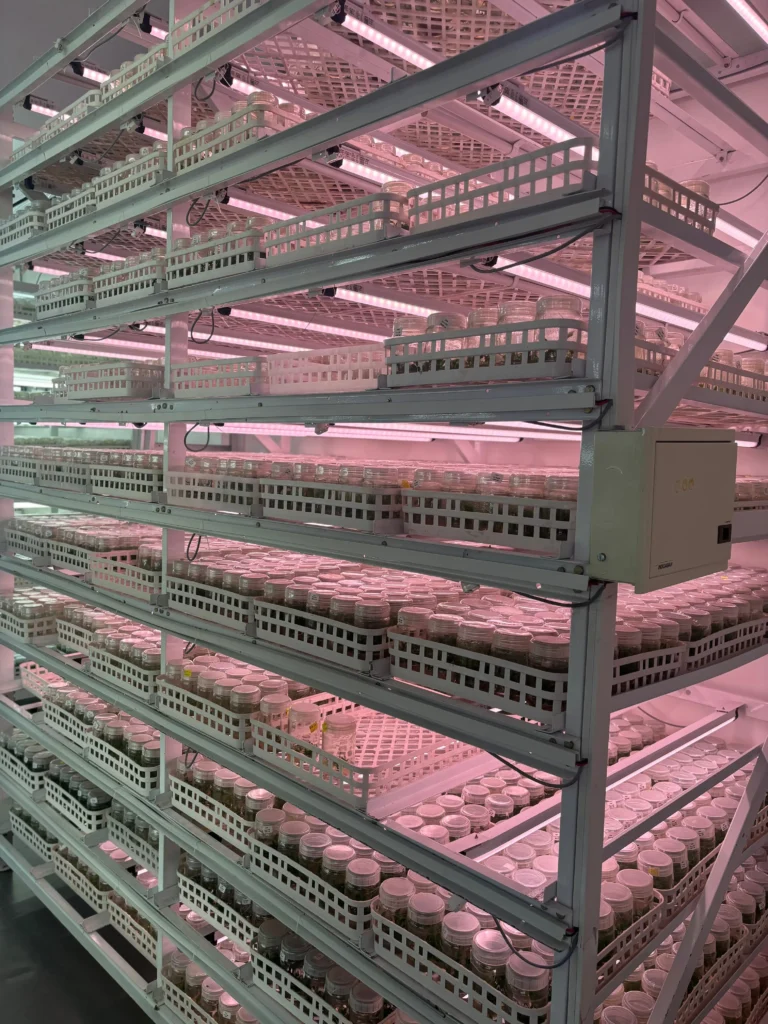

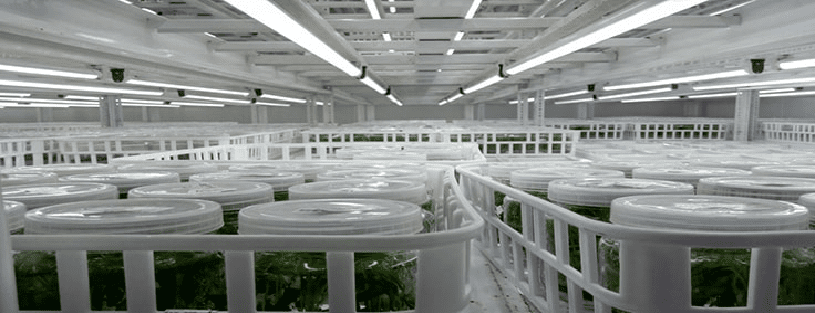

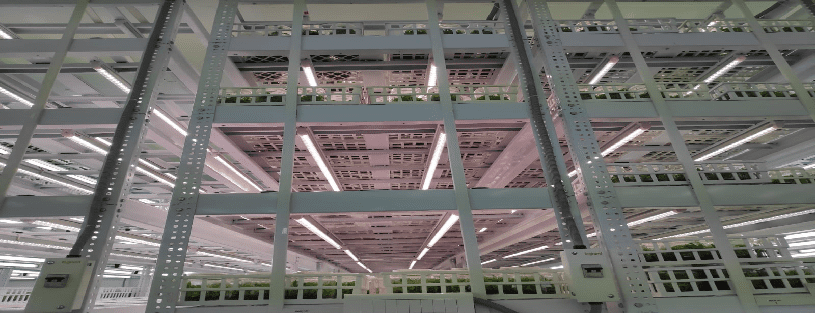

Field Work Photos
