Lights For Tissue Culture | Solution Guide

Tissue Culture Grow Light 5

Nexsel Product for tissue culture
Nexsel LED lights are durabale, safe and easy to install. We will assit you in chosing the most suitable spectrum and model for your application.

TSGL8-R ( T8 LED Tube- Retrofit )
Nexsel provide T8 retrofit type tubelight to replace conventional flurocent tubelight.

TSGL8-R ( T8 LED Tube)
Nexsel HYGL8 is designed for high light intencity for multilayer application with multipal spectra.

Easy to Install :

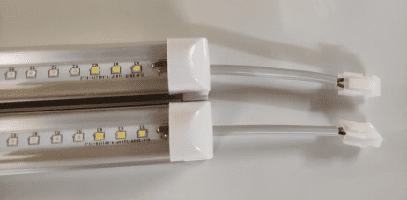

Nexsel HYGL8-R
This types of luminaries are easy to install into your current flurocent fixture. This lights are directed, hence no reflector is needed enabling closer installation of the tubes to the plant.

Nexsel HYGL8
This types of luminaries are easily installed by using hooks provided by Nexsel. This lights chainable and dimmable, making them suitable for a large variety of applications.

Tissue Culture 2
Tissue Culture Grow Light 4
Tissue Culture 3

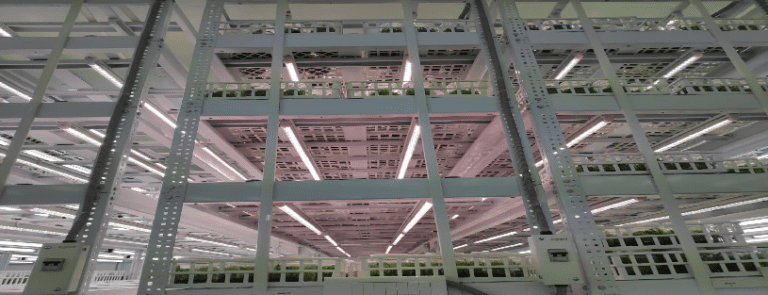

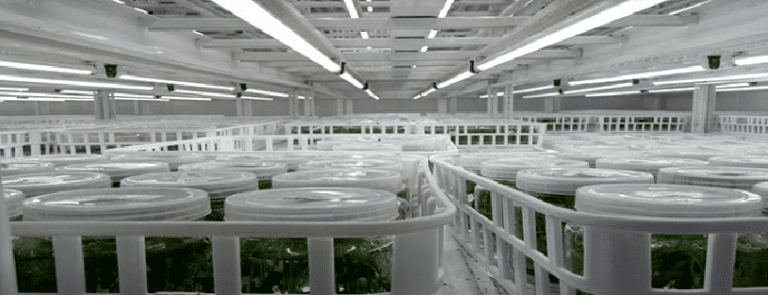

NEXSEL LEDs In Use :





Nexsel offers light for tissue culture applications with a high Color Rendering Index (CRI). This enables easy and safe observation of your plant material. Spectrum can be chosen according to your needs and aims, ensuring the best possible plant quality. Nexsel LEDs do not produce radiant heat towards the plants or generate excessive heat through an electronic ballast as fluorescent tubes do. Cooler Nexsel LEDs are safe to touch and easy to clean, as they have an IP64 rating. Nexsel LEDs have a light decay of only 10-15% at 35 000 hours and a typical lifetime of 50000 hours

Economical Savings :



The achieved economical savings are a combination of longer lifetime and higher energy effciency of the Nexsel LEDs compared to traditional light sources. The demand for cooling also decreases when old technology is replaced with Nexsel LEDs

Normally ROI = 10-12 months if traditional lights replaced with Nexsel LEDs

Tissue Culture 4
Tissue Culture 6

▪Length – 1200 mm
▪Retrofit for replacement of fluorescent tube light
▪Comes with either clear or milky white diffuser
▪PPFD – 30 from 30cm ( its depends on crop)
▪IP 55 protection

Tissue Culture 6

▪Length – 300mm, 600mm, 1200mm
▪Light weight
▪Light weight
▪PPFD – 30 @30cm ( its depends on crop)

Please inspect the goods upon receipt to ensure that your delivery is complete and that no goods are defective. If you detect any damage to the packaging, please notify the carrier about the dam¬age immediately. If the packaging shows no damage but the goods inside are defective; bent or show other signs of damage, contact us +91 9881798822 or e-mail ([email protected]). Thank you!

SURGE PROTECTORS :



Nexsel LED drivers have built-in surge protection. However, to protect against surge peaks above 3KV (e. g. due to a lightning strike) we recommend the installation of transient voltage surge suppression.

Tissue Culture 7
INSULATION RESISTANCE/ELECTRIC STRENGTH TESTING :


▪Nexsel products have been fully tested during manufacture. There is no need to test again
▪If the electrical site wiring must be tested, test with grow bar disconnected from the mains supply.
▪If power supply ( in built) are connected to the mains supply during the test, all Live phases and Neutral must be connected together before the test is carried out (Remember to check correct reconnection before reapplying the mains supply

Tissue Culture 8
BASIC FAULT FINDING :



▪Lighting faults can be caused by a rare product defect, connection error, lack of supply voltage, or other external factor.
▪Switch off the mains supply and disconnect the luminaire/grow bar (unplug the Wieland input connector).
▪Connect the luminaire to a mains supply circuit ( other circuit) known to be providing voltage
▪If the problem remains, then the luminaire may be damaged
▪If the luminaire now works, then there is either a connection error in the original mains supply circuit, or no voltage is being provided from the original mains supply circuit
▪Note details of the problem (product type, quantity, problem description…) and contact Nexsel for further assistance.
If a problem reoccurs or affects many products at the same time, please contact Nexsel for further advice and assistance

Tissue Culture 9
WARRANTY :



▪Products are covered by 1 or 2 year limited warranty (mentioned in invoice). Warranty starts from invoice date.
▪The warranty offered is “Return-to-Base”, meaning suspected faulty items shall be returned to Nexsel for fault and warranty validation before any repair or replacement can be agreed.
▪Nexsel warrants that each Product will be free from defects in material and workmanship for the duration of the warranty period as long as the products are installed and used in accordance with our published specifications and recommendations.
▪If 40 % or more failure happens at side then Nexsel will provide on side service.
▪Warranty shall be void in the event any repairs or alterations not duly authorized by Nexsel in writing are made to the Product by any person

▪Note details of the problem (product type, quantity, problem description…) and contact Nexsel for further assistance.
If a problem reoccurs or affects many products at the same time, please contact Nexsel for further advice and assistance.

* Above is a summary of our warranty policy. For full details please see: www.nexsel.tech
*Please contact us if you require help

Certification :



▪CE, RoHs, FCC

* Above is a summary of our warranty policy. For full details please see: www.nexsel.tech *Please contact us if you require help

Head Office :



Block B-215 – Jumeirah 1 – Dubai – United Arab Emirates
T- +971561348331
E- [email protected]
W- www.nexsel.tech

Tissue Culture Grow Light Installation Guide :



Tissue Culture Grow Light Installation Guide: Paving the Path to Successful Cultivation in UAE, Dubai, and Abu Dhabi

Welcome to the comprehensive Tissue Culture Grow Light Installation Guide, specifically tailored to empower growers in UAE, Dubai, and Abu Dhabi with the knowledge and expertise needed for a successful tissue culture propagation journey. Whether you’re an experienced researcher or a novice enthusiast, this step-by-step guide will ensure a seamless and efficient installation of your Tissue Culture Grow Light system, setting the stage for optimal plant development and productivity.

1. Site Assessment and Planning: Begin by conducting a thorough site assessment of your tissue culture laboratory or growing facility. Identify the optimal location for installing the grow lights, considering factors such as available space, electrical connections, and proximity to tissue culture workstations. Plan the layout to ensure uniform light distribution across all tissue culture trays or shelves.

2. Preparing the Area: Before commencing installation, ensure the designated area is clean and free from obstructions. Prepare any required mounting brackets or supports based on the grow light’s design and installation specifications.

3. Assembling the Tissue Culture Grow Light: Follow the manufacturer’s instructions to assemble the Tissue Culture Grow Light system accurately. Pay close attention to the correct placement of LED modules, reflectors, and other components. Double-check all connections to ensure they are secure and properly fastened.

4. Electrical Wiring: Engage a certified electrician to connect the Tissue Culture Grow Light system to the power supply. Ensure that the electrical requirements of the grow light are compatible with your facility’s electrical infrastructure. Implement necessary safety measures to protect against electrical hazards.

5. Height Adjustment and Light Spectrum Configuration: Once the Tissue Culture Grow Light system is securely installed, adjust the height to achieve the optimal light intensity for your tissue culture trays or shelves. Use the control panel or interface provided by the grow light to set the desired light spectrum based on the specific requirements of your tissue cultures.

6. Trial Run and Calibration: Conduct a trial run of the Tissue Culture Grow Light system to ensure everything is functioning as expected. Monitor the light intensity, spectrum, and coverage to verify they align with your desired settings. Fine-tune any parameters as needed to achieve the best results.

7. Maintenance and Safety: Establish a regular maintenance schedule to ensure the Tissue Culture Grow Light system operates at its peak performance. Regularly clean the LED modules and reflectors to prevent dust buildup that may reduce light efficiency. Inspect electrical connections periodically for safety and reliability.

8. Monitoring and Growth Assessment: Consistently monitor the growth and development of your tissue cultures under the Tissue Culture Grow Light system. Record growth data and make adjustments to the light spectrum or intensity as necessary to optimize results and maximize productivity.

By following this detailed Tissue Culture Grow Light Installation Guide, you can create an ideal environment for your tissue culture research and cultivation in UAE, Dubai, and Abu Dhabi. Embrace the power of precision lighting and elevate your tissue culture endeavors to new heights, achieving remarkable advancements in plant propagation and research.
