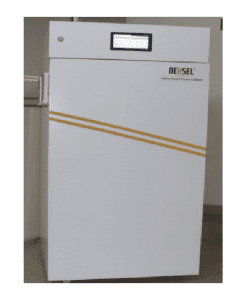

Climate Controlled Growth Chamber

Alpha Smart Grow Cabinet

Model:

Alpha

Minimum Order: 01

Brief Description:

180 watt, Multi spectrum tannable light i.e adjustable spectrum and intensity control, growing area – 2’ x 2’ x4’, temperature and humidity indication, with IOT control smart grow cabinet.

Product Description

Multi spectrum tannable light with 8 adjustable spectra.
Multi wavelength covers- 395nm, 450nm, 520nm, 590nm, 660nm, 735nm,6500k, 2700k.
0-100% intensity control.
The grow cabinet comes in at 24” wide, 24” deep and 48” high grow area,making it a great producer for the tight spaces.
Outer dimensions 30’’ wide, 30’’ deep and 60’’ high.
Available in Hydroponics and Soil configurations.
Sturdy construction and locking door provide a completely safe and secure grow.
180-watt Multi spectrum tannable led grow light – you can adjust spectrum and intensity as per plant requirement.
Cloud base connectivity.
Real time data.
Web base control.
Temperature and Humidity Sensors.
High PPF – 2.2 to 2.4 umol/J.
Passive cooling .
4 cooling fan which helps cabinet to maintain room temperature.
I-Ball tab fitted at top for control and indication
Adjustable internal circulation fan for essential cross airflow distribution.
180 W LED Grow PANEL, with top LEDs, square design, passive cooling, more energy efficient own it, you’re ready to do research.

Applications

Horticultural research .
Speed Breeding.
Pharma Companies.

Key Features

8 wavelength adjustment.
0-100% dimming provision .
0-1000 PPFD adjustment provision at 2.5ft from light .
IOT control.
High PPF – 2.4 umol/J ( Also available at 3.7 umol/J).
Custom based design.
Humidity and temperature indication.

Key Advantages

Develop ‘n’ numbers of spectrum combination.
Change intensity as per plant requirement.
Control spectrum from remote location.
Add wavelength as per plant requirement.

Benefits

Suitable for all types of plant.
Best for horticultural research and creation of spectrum recipe for any plant.
Check performance of plant for various DLI .
Real time data.
Easy operation.

Technical Specifications

Main System Technical Specification
Cabinet Weight (Kg)	75 Kg
Outer Dimension
Height (in./mm)	63 / 1600
Width (in./mm)	31 / 780
Depth (in./mm)	28 / 720
Inner Dimension
Height (in./mm)	48 / 1210
Width (in./mm)	24 / 610
Depth (in./mm)	24 / 610
Power Requirement (50Hz)	230 VAC, 3 A single phase
Cooling Requirement	+15°C to +30°C
Temperature (Light ON)	+15°C to +45°C
Environmental Requirement
Temperature	+15°C to +25°C
Humidity	Below 60%
Growth Envelope
Growth Bed Area (ft)	2 X 2
Growth Height (in./mm)	48 / 1220
Capacity (Liters)	450

Controller Technical Specification
Control characteristic	Digital controlling
Control method	Web Based
Rated input voltage	180VAC- 240VAC
Response time	＜5sec
Protection function	unbalance
Working temperature	-25°C -- +75°C
Working humidity	<60%
Degree of protection	IP50
