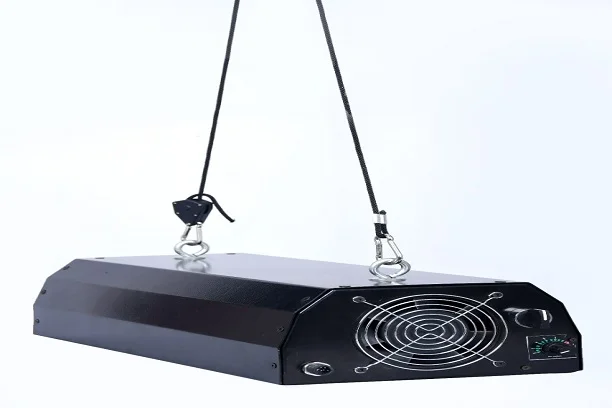

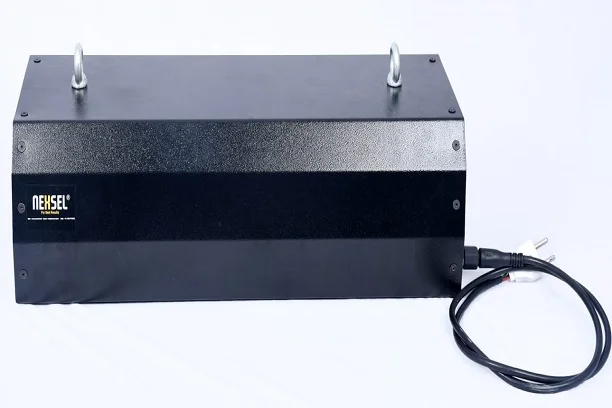

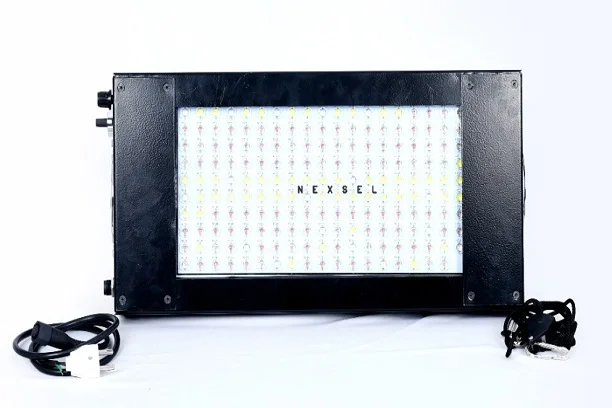

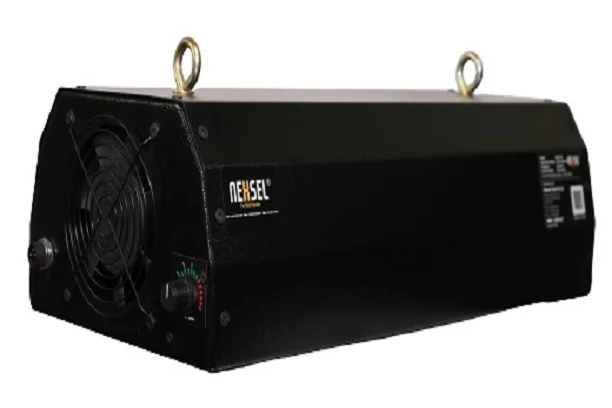

GHGL 210 S

Model:

1.GHGL 210 S

Certification: BIS, CE, RoHS

Spectrum: Nx4B

Minimum Order: 05 No’s

Key Features

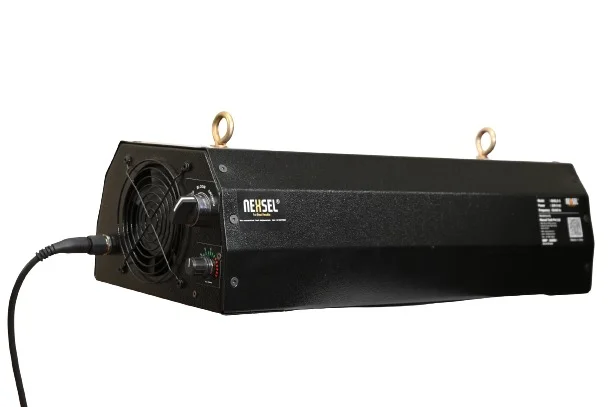

  • Active cooling
  • 210 watts

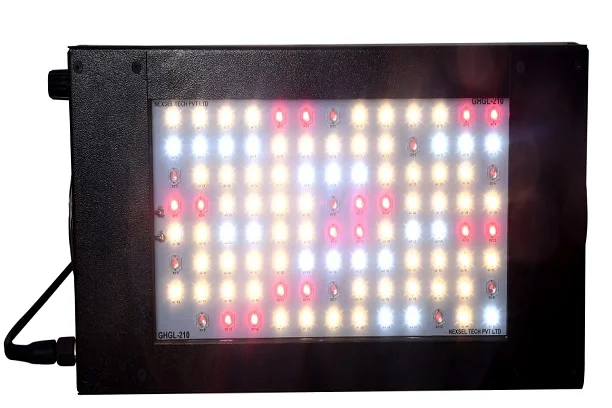

  • High intensity LED chips (PPE – upto 3.7 µmol/J)
  • 0 to 100% dimming provision
  • Aluminum Heat sink + tempered glass with 60 degrees Lense output
  • Broad spectrum with 660 nm, 735 nm, 6500 k and 3000 k
  • Up to 1 meter height adjustment provision
  • 24 months warranty

Key Advantages & Benefits

  • Better heat dissipation= better life of grow light
  • Energy efficiency: The high-efficiency PPE LED chips offer excellent energy efficiency, consuming less power and reducing electricity bills.
  • Versatile lighting options: The broad spectrum of light, including red and blue light wavelengths, 6500 k, and 3000 k, cater to different plant stages and enhance their growth.
  • Customizable lighting: The dimming provision allows users to adjust the light intensity according to their plant’s requirements.
  • Flexible installation: The adjustable height provision (up to 1 meter) makes it easy to set up the lights at the optimal height for the plants.
  • Warranty: The 24-month warranty offers peace of mind to users, assuring them of the product’s quality and reliability.
  • Equivalent to 600 -watt conventional HID lights (PAR Light)

Applications

  • Greenhouse
  • Supplementary light
  • Speed breeding

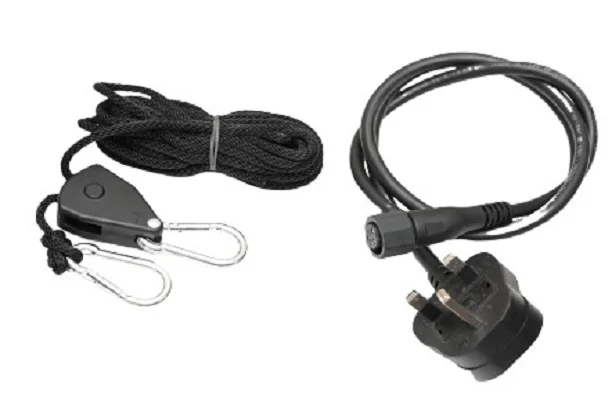

Installation accessories

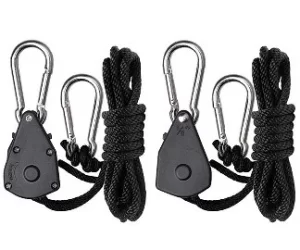

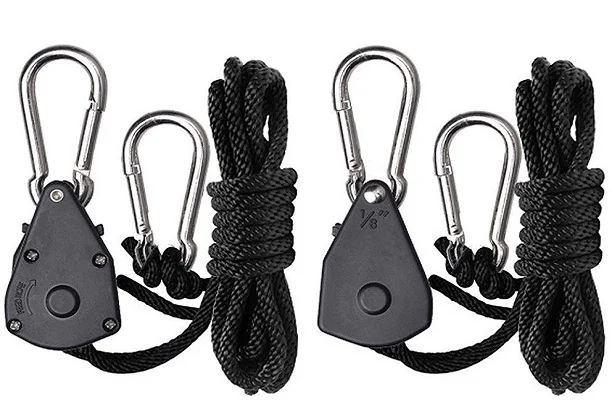

  • Height adjustment mechanism
  • 1-meter-long Input cord

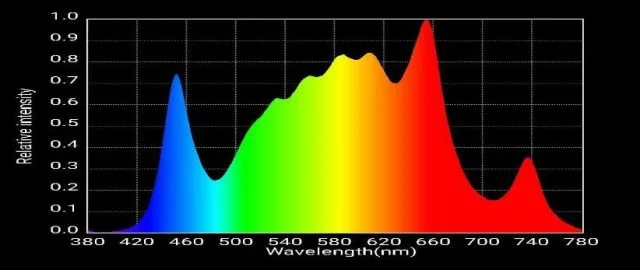

Spectrum Details

Nx4a(Broad Spectrum)

GHGL-210-S-1

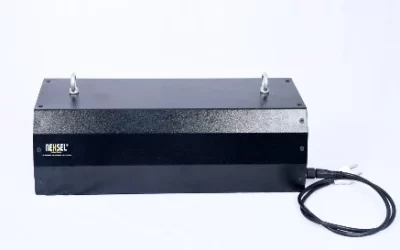

GHGL-210-S-2
GHGL 210 S 3

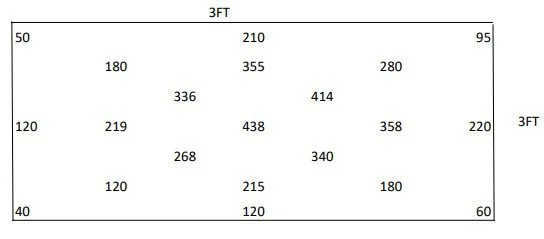

PPFD Chart

(Kindly note above readings from 3 ft height)

Technical Specifications
Operating Voltage120 to 350 V AC
Frequency50/60 Hz
Current (A) (Input)1 Amp (at 230 V)
Power Consumption (Input)230 watts
Dimensions (Length x width x height)490 mm x 235 mm x 190 mm
Operating Temperature0®-45®
Efficiency0.90
Driver life span36 Months
LED Life Span50,000 with L 70
Power factor0.92
Light SourceSMD power LED’s
Weight9 kg (19.85 lb)
PPE (LED Chip’s)Upto 3.4 µmole/J
Thermal ManagementActive
Electrical InsulationClass A
Short Circuit ProtectionYes
Overall Current ProtectionYes
Thermal ProtectionYes
Warranty24 months
Nominal Electrical AC inputs

AC Voltage

130 V g>

230 V

0277 V

347 V

350V

AC Current

0.58 A

1.01A

0.945

1.08A

1.05A

AC Power

76.2W

233.8W

262.1W

307.8W

300.3W

Power Factor

0.99

0.99

0.99

0.82

0.82
