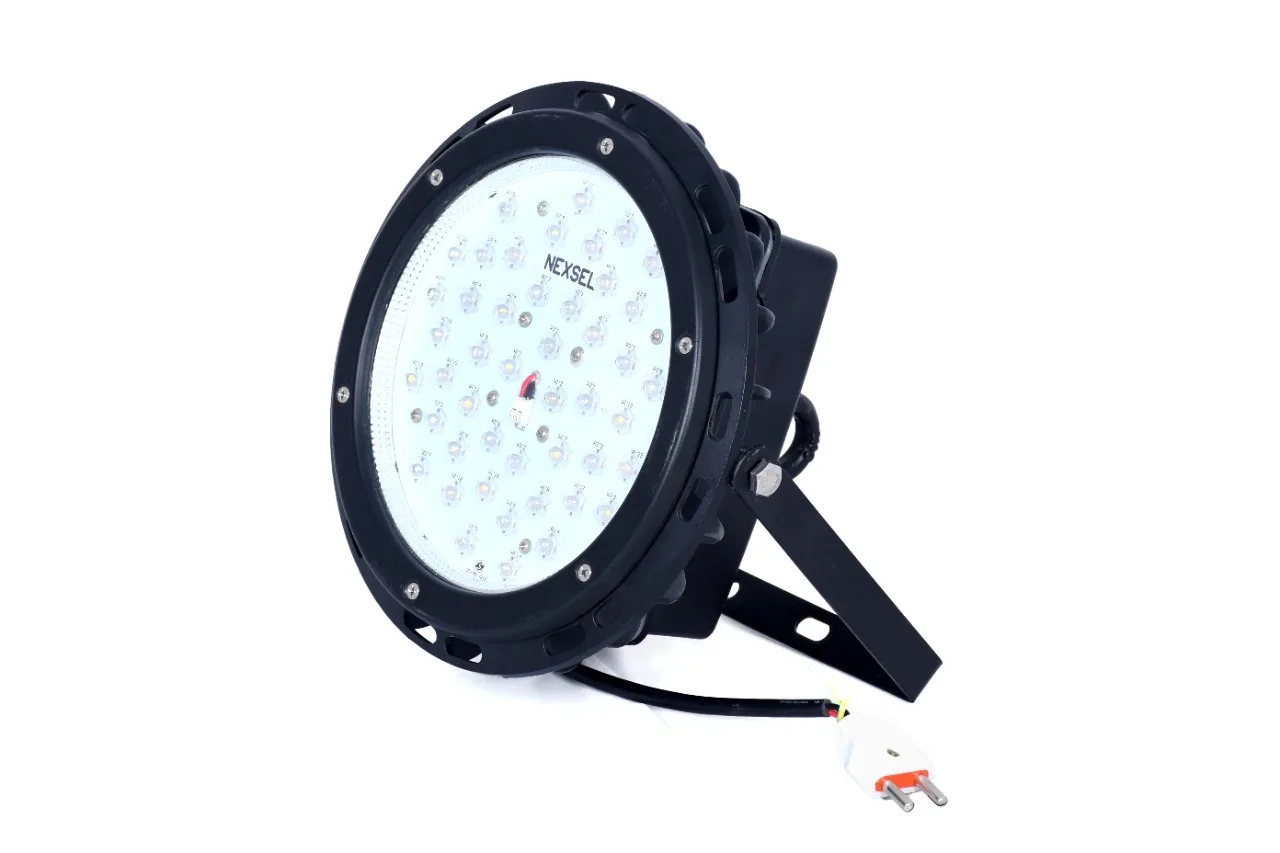

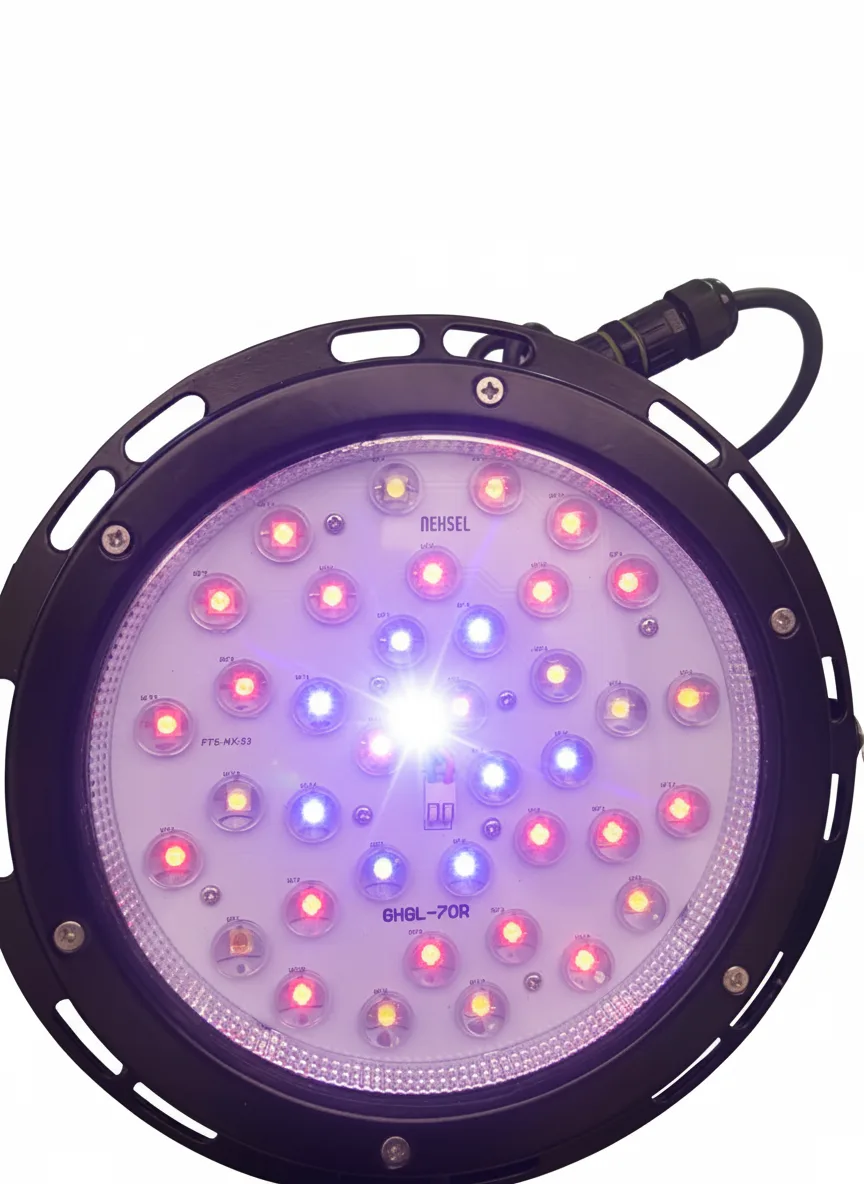

Green House Grow Light - GHGL R80
Product Overview
Name :
Green House Grow Light
Model :
GHGL R80
Brief Description :
75 watts LED grow light, with optimum full spectrum layout with ePAR coverage, Refactor design excellent heat dissipation system, IP 65, best for commercial growing.
Key Features, Benefits & Advantages
Top Features
- Passive cooling
- High intensity LEDs PPF – Upto 3.4 µmol/J.
- 1 meter height adjustment provision.
- Aluminum casing + tempered glass.
- Broad spectrum with ePAR coverage (400 – 750 nm).
- Up to 60 months warranty.
Benefits & Advantages to Customers
- Stays cool thanks to internal heat dissipation design.
- Easy and quick installation.
- Better heat dissipation = better life of grow light.
- Best for balcony and green wall application.
- 60% less electricity consumption compared to conventional light
- Long life and maintenance free.
- Suitable for all types of plants
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 180 to 240 |
| Input Power (Watts) | 75 |
| Input Current (Amps) | 0.31 |
| Inrush Current (Amps) | - |
| Frequency (Hz) | 50 |
| Light Source | smd LED |
| Plug Socket | NA |
| THD | Less than 10 |
| Power Factor | 0.9 |
| Dimming Interface | Manual (Optional) |
| Surge Protection (kV) | 4 |
Mechanical Parameters
| Dimensions (Dia x H) mm | 250 x 110 |
| Weight | 2.7 / 6 |
| Material | Aluminium |
| Fixture Color | White / Black |
| Beam Angle/Light Distribution | 30° / 60° |
| Form Factor | Round |
| Dimension Drawing | D 250, H 110 |
Performance Parameters
| PPE (µmol/J) | 2.6 to 2.8 |
| LED Lifespan (Hrs) | 50,000 |
| Lumen per Watt | 110 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 45 |
| Operating Humidity | 100 |
| IP Rating | IP65 |
Spectrum Details
Spectrum Nx4B
PFD %
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nx4B | 0% | 12% | 32% | 43% | 13% | 100 | 87 | 3329K | 87 | 0.4 | 3 | 3.4 |
PPFD Intensity Chart / Heat Map
1.2 m
| 21 | 28 | 23 |
| 52 | 63 | 49 |
| 80 | 91 | 79 |
| 51 | 71 | 45 |
| 18 | 31 | 19 |
1.2 m
Gap between light and PAR sensor is 2 m

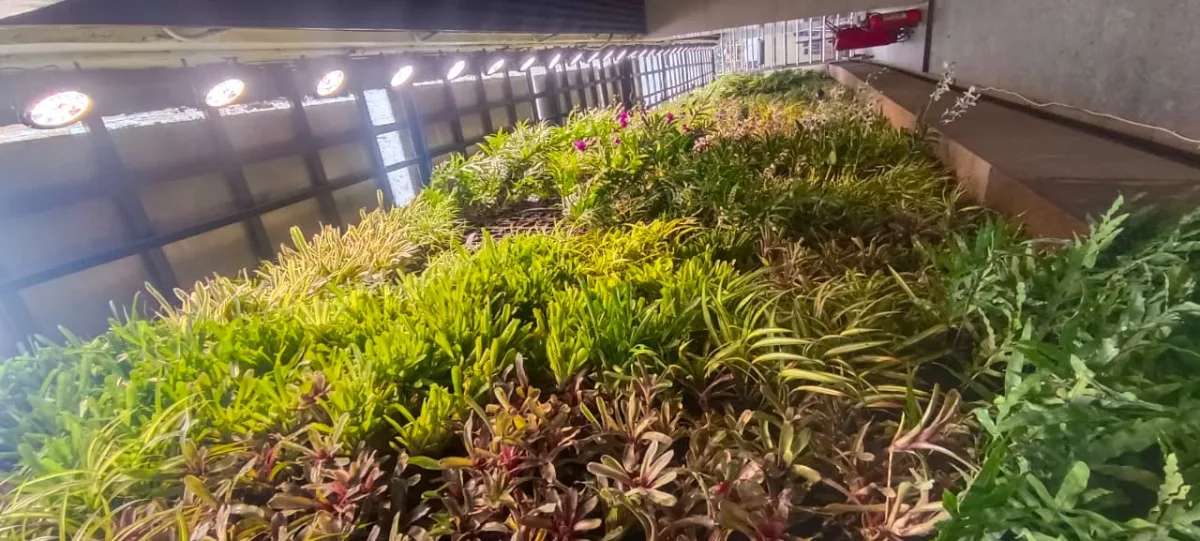

Field Work Photo

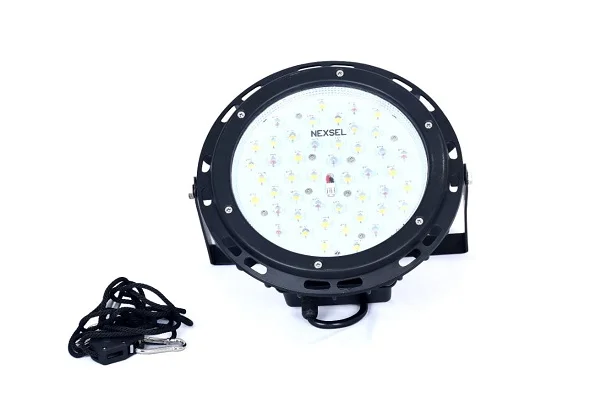

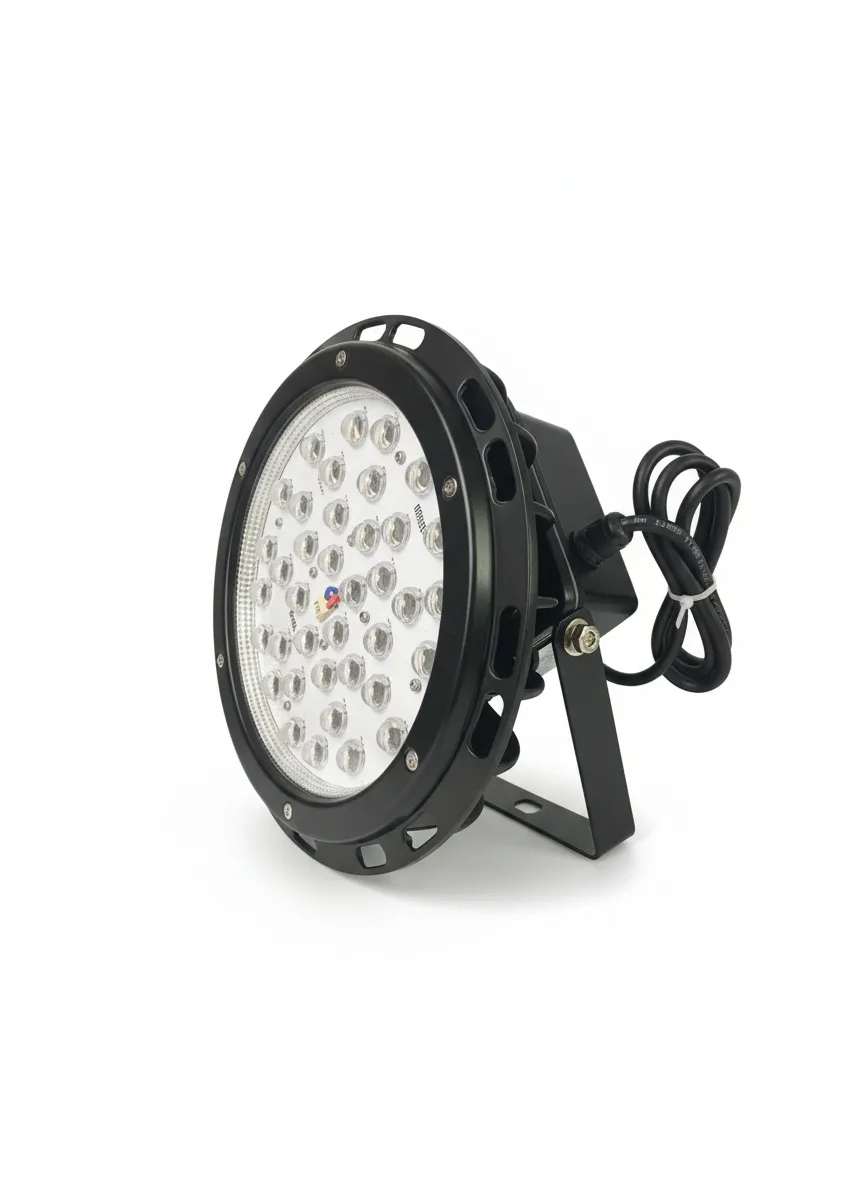

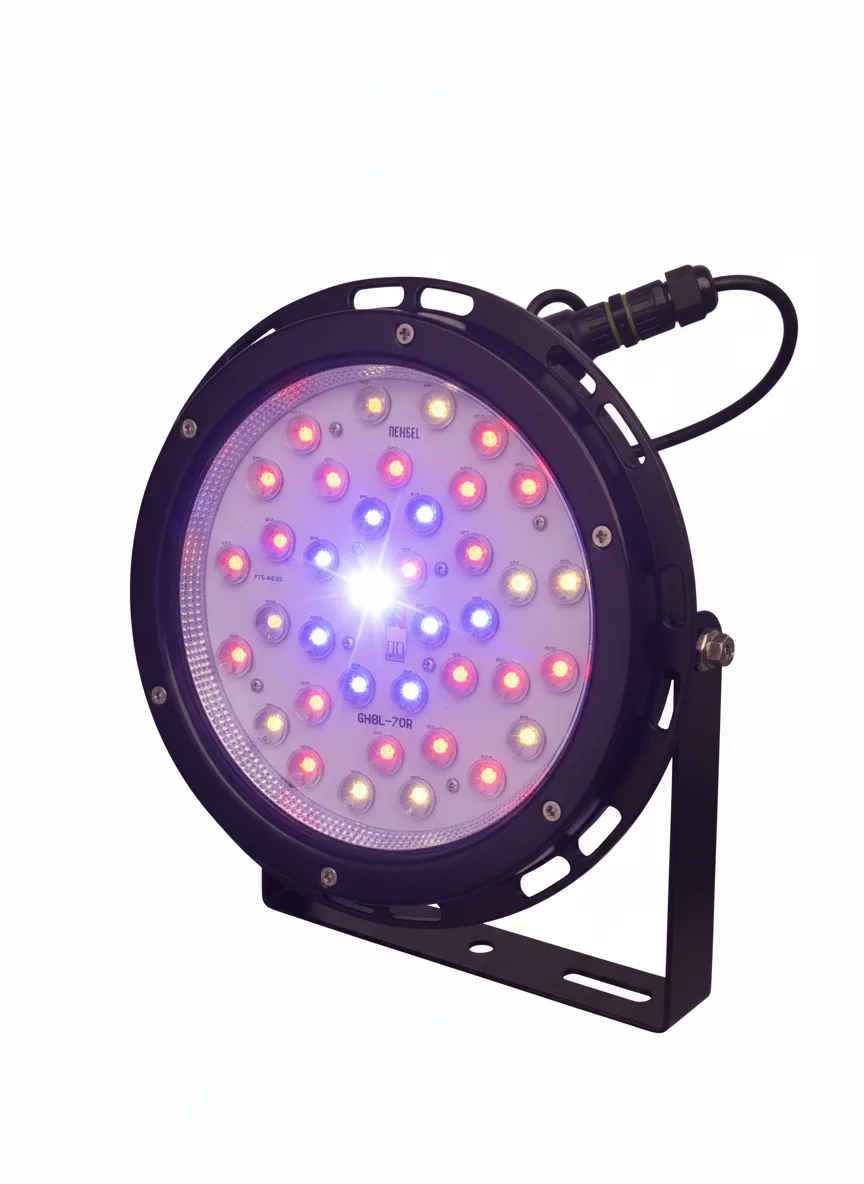

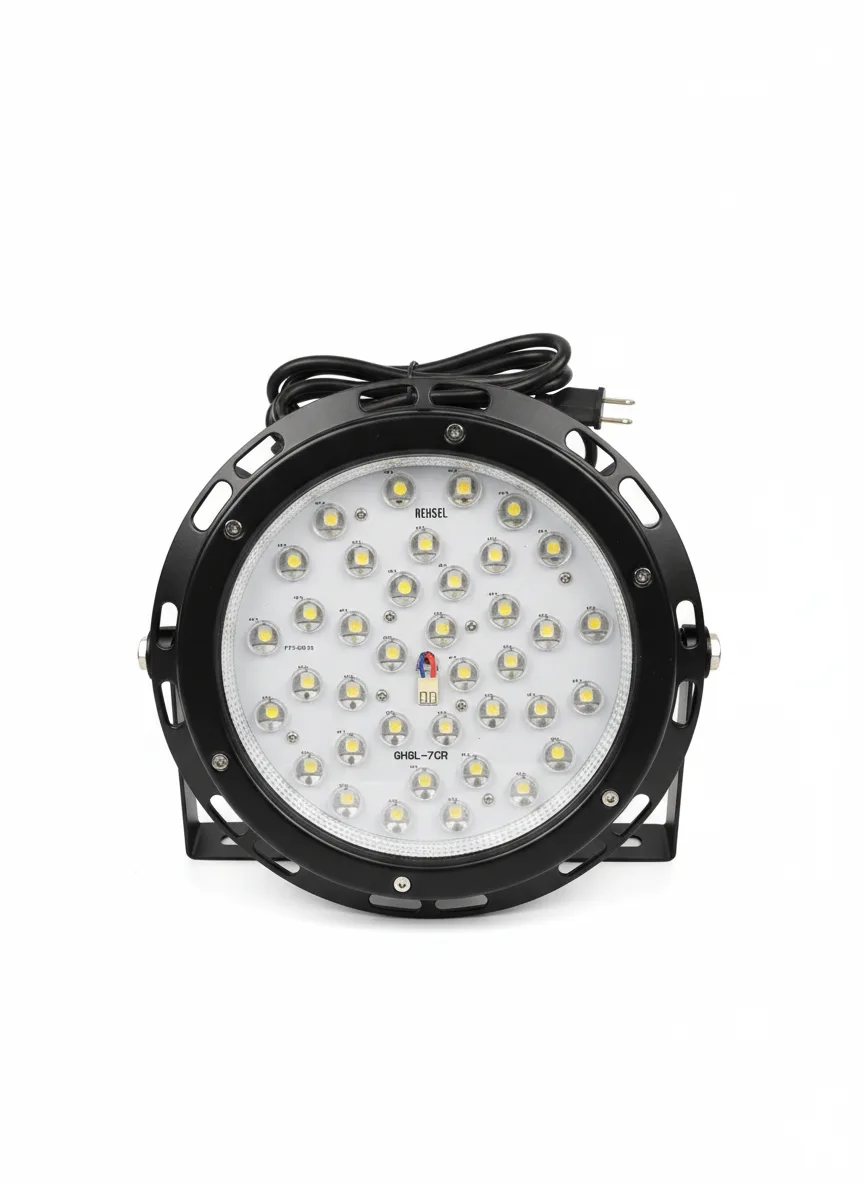

Visuals
Installation and Connectivity

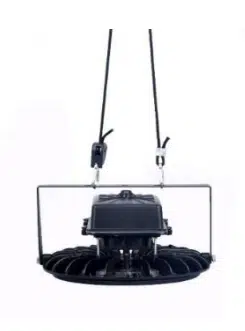

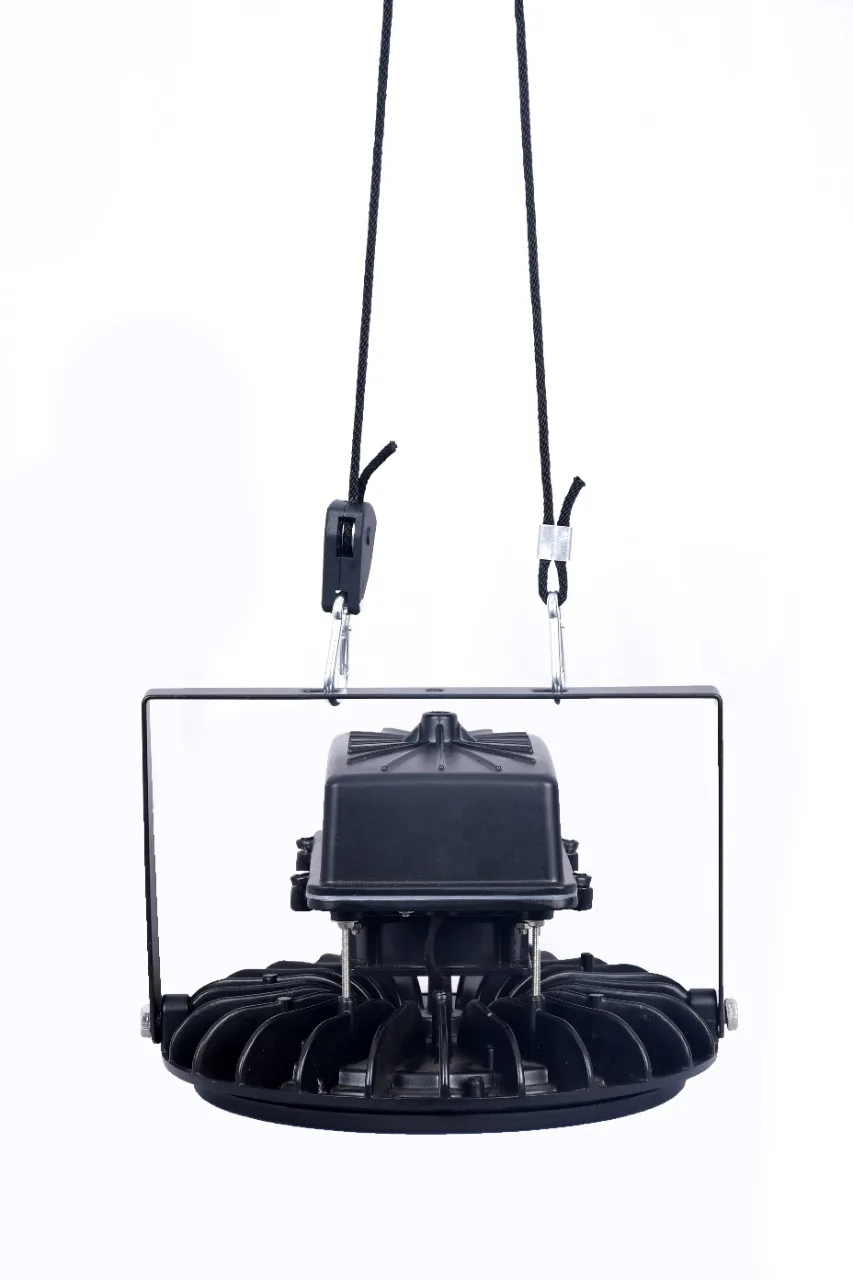

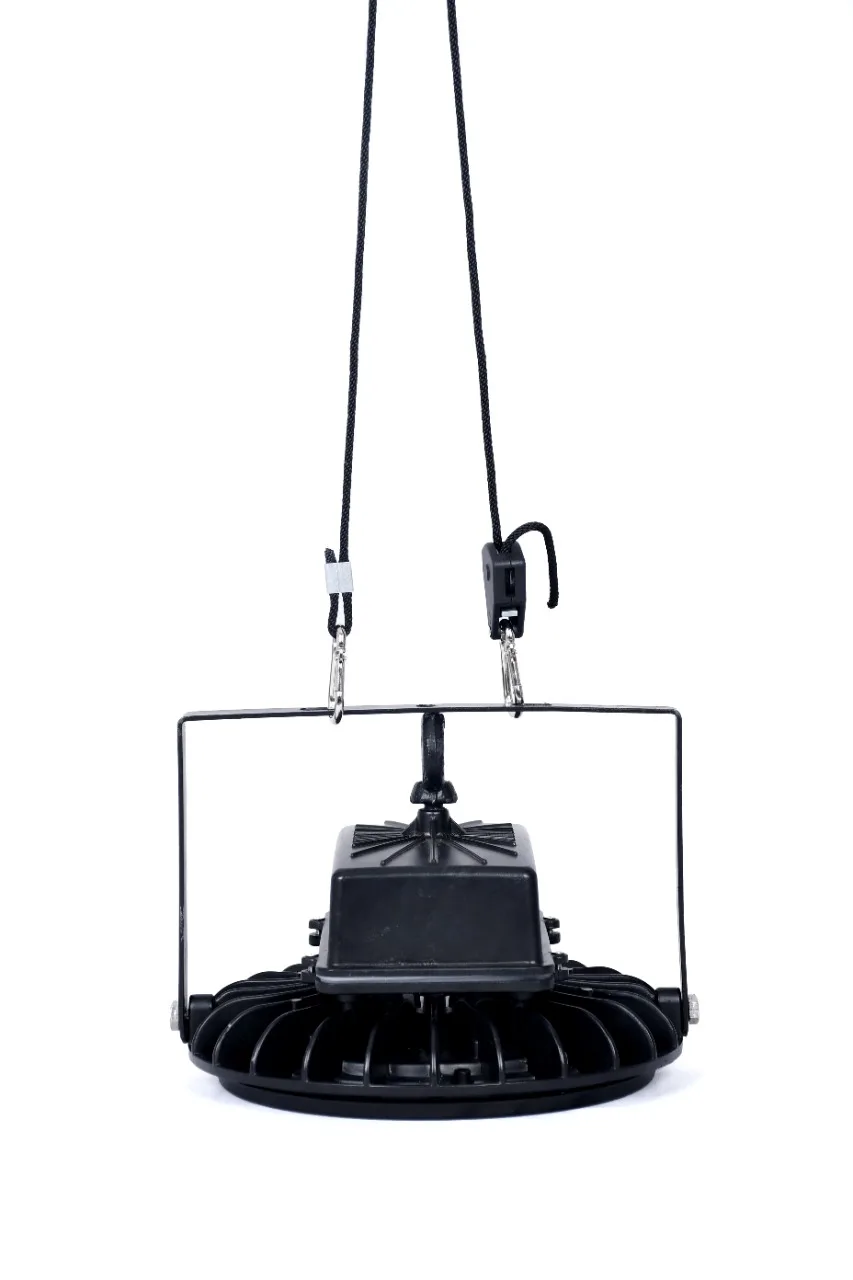

Mounting Options
- Rope Ratchet
Connecting Options
- 1 Meter input AC cable (customizable)
