Hydroponics

Hydroponics
HYGL8

Model:

1) HYGL8-17

2) HYGL8-14

3) HYGL8-09

Certification: CE,RoHS

Spectrum: Nx1 ,Nx1.1 and Nx4

Minimum Order: 50 pcs

Brief Description

⚈   LED grow bar lights:

I. 17w/4ft

II. 14w/3ft

III. 09w/2ft

⚈   380nm-730nm available, full spectrum; IP 55; best for commercial growing; also available in custom-tailored spectrum.

Product Details

  • Hydroponics LED Grow Bar 17/14/9 w for Commercial Growing.
  • The optimal lighting solution is different for every crop.
  • Based on successful tests in the field, Nexsel have been developed different lamps with specific light recipes for different plants

Please contact us if you require help choosing the right type of lamp for your plants.

#Grow Fast, High Efficiency
#Nexsel – for best results

17w/4ft, 14 w/3ft, 09/2ft LED Grow Bar, with top LEDs, vivid new design, more energy efficient own it, you’re ready to grow.

The colour blend is engineered to promote healthy plants through all growth phases. Cost-efficient, reliable and safe, it runs cool and it is worth every penny.

Applications

  • Hydroponics/Aquaponics.
  • Aeroponics.
  • Use as Supplementary light.
  • Commercial lighting.

Key Benefits

  • Reduce the cycle time of plant
  • Reduces energy costs with high-efficiency LED lighting, 60% less electricity
    consumption compared to conventional lighting
  • Installs easily and safely. (plug and play design)
  • Flickering free

Key Features

  • Thanks to internal heat dissipation design its stays cools
  • Aluminium casing + tempered glass.
  • Works right out of the box; ready to plug and play.
  • Package includes one LED light bar, one power cord, one clips for install
  • Backed with 1/2-year warranty.

Spectrum Details

Nx1.1

Nx4

Technical Specifications
Operating Voltage80-300 V
Power Consumption17/14/09 w
Driver Current240mA
Weight300 gm

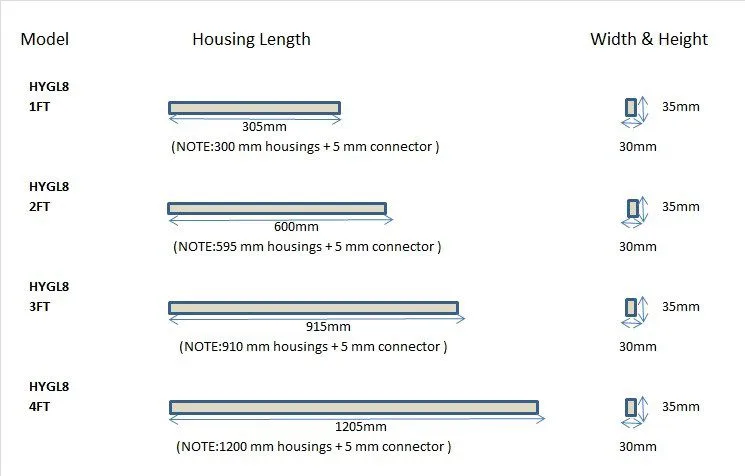

Dimensions ( in mm)Please check below image
Operating Temperature0º C to 45º C
Light Source0.2 W LED
Qty of Led's104/88/56
Efficiency0.88
Power Factor0.98
LED Angle90 degree
PPFD2-2.2µmole/watt
Wavelength380nm-740nm
Heat Dissipation308 btu/hr
LED Life50,000 Hours

Please Note: HYGL8 1 ft available in Nx4 spectrum only

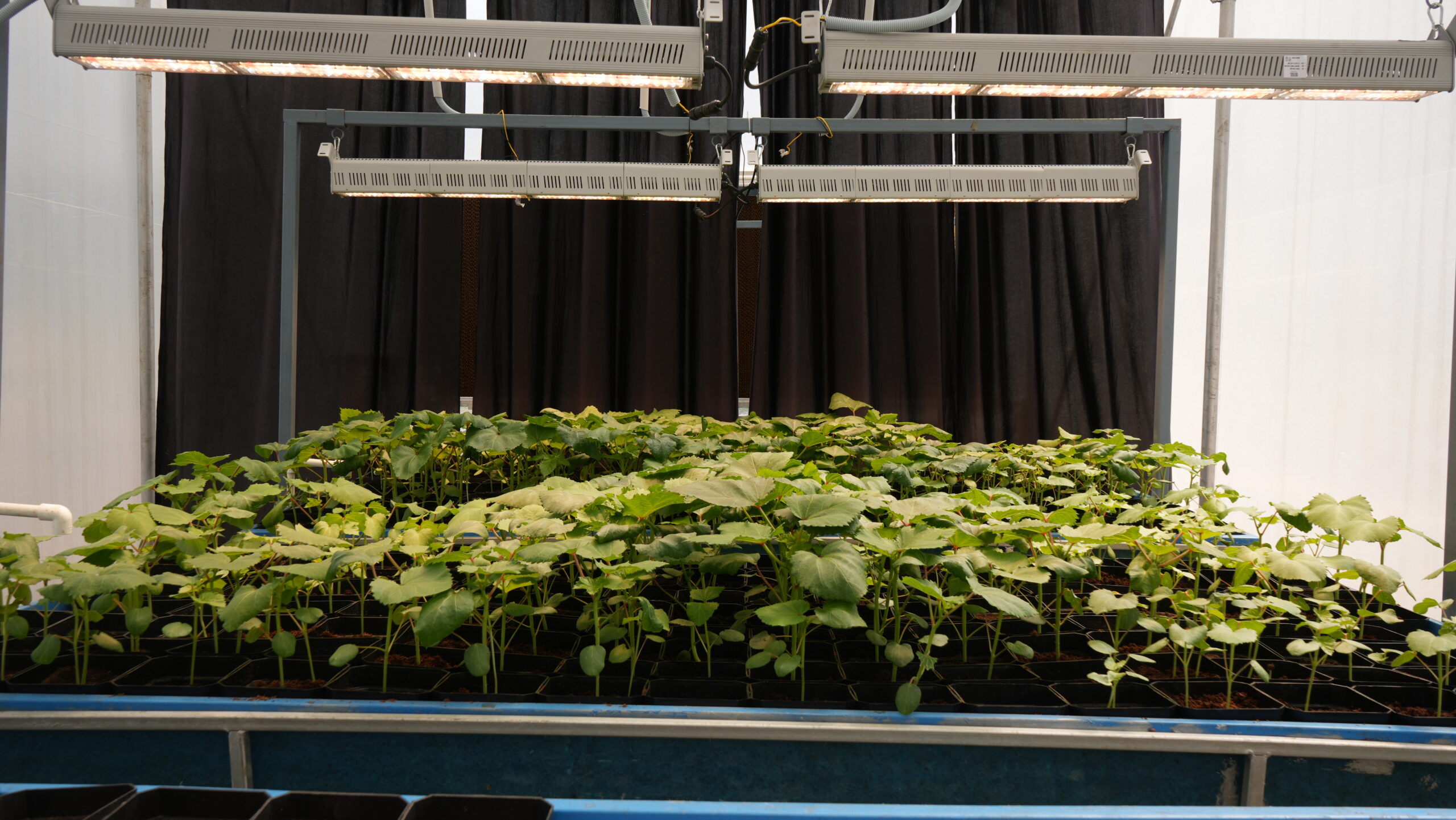

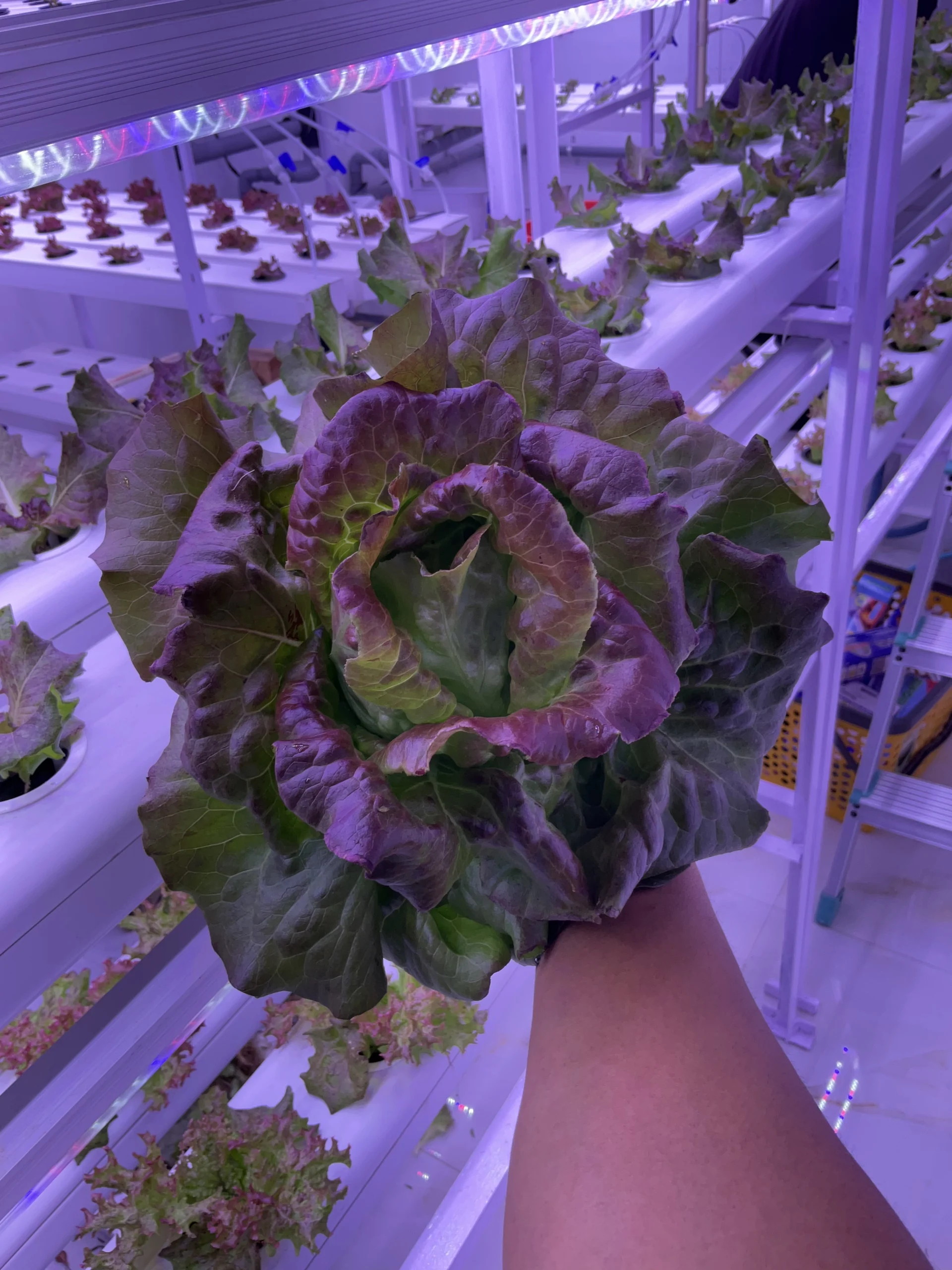

Field Work Photo

new4
TSGL8 R
TSGL8/TSGL8R

Model:

1) TSGL8-14

2) TSGL8-18

3) TSGL8 – 09

4) TSGL8 R-18

Certification: CE,RoHS

Spectrum: Nx6.1 & Nx6.2

Minimum Order: 50 pcs

Brief Description:

LED grow bar i. 18w, 14w/4ft ii. 09 watt/2ft

380nm-730nm available, full spectrum; IP 58; best for commercial growing; also available in custom-tailored spectrum

#Grow Fast, High Efficiency

– Best for commercial growers – The optimal lighting solution is different for every crop – Based on successful tests at our 1000 sq.ft testing facility, Nexsel have been developed different lamps with specific light recipes for different plants – Nexsel has 5 years+ experience in horticulture lighting – Nexsel use special horticulture grade led chips with high PPF value
The colour blend is engineered to promote healthy plants through all growth phases. Cost-efficient, reliable and safe, it runs cool and it is worth every penny.

✓ Key Features • 1.3x more intensity (PPF 2.2 -2.4 µmol/J) • Specially designed C3 type connectors • Customized spectrum • 80/20 type diffuser • Eliminates the need for ballasts and reflectors • Stays cool thanks to internal heat dissipation design

✓ Advantages • More profound colour • Proper leaf texture • Uniform spectrum graph over all plants • 24 months warranty • Easy installation

✓ Benefits • Upto 60% less electricity consumption compared with conventional lighting • Save 80% wiring cost per layer • Save 60-70% installation time • Reduce Upto 25% AC load

Nx6.1

Nx6.2

Technical Specifications
Operating Voltage80-300 V
Power Consumption18/14/09 w
Driver Current300 mA
Weight 300/200 gm
Dimensions ( in mm)1200x35x30 / 600x35x30
Operating Temperature0º C to 45º C
Light Source 0.5 w L
Qty of Led's56
Efficiency0.88
Power Factor0.98
PPFDPPFD 40 from 30 cm
Wavelength450 nm, 660 nm
LED Life50,000 Hours

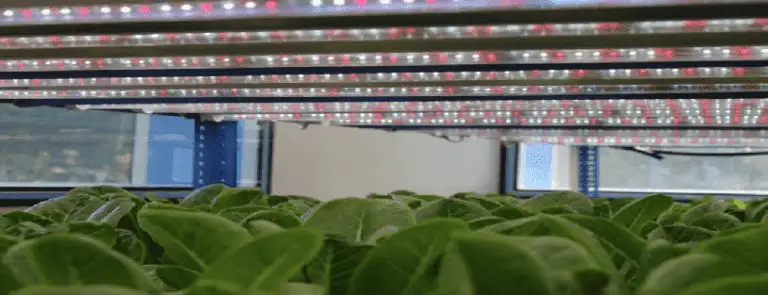

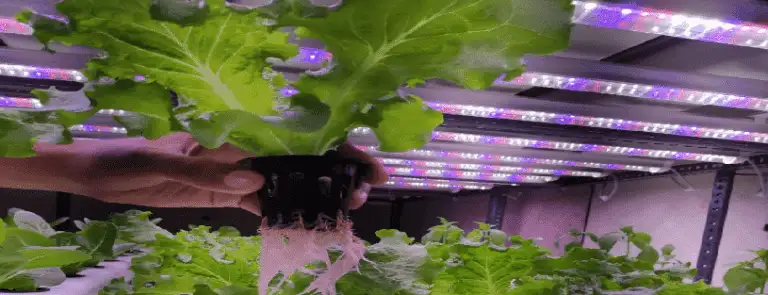

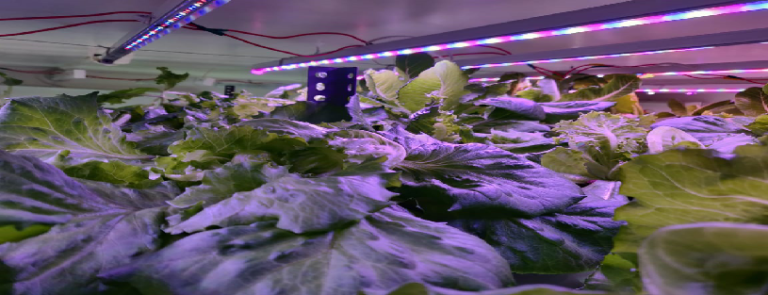

Field Work Photo

FOR ANY INFORMATION OR ENQUIRY

Our main products: Hydroponics grow light, tissue culture grow light , speed breeding, LED grow lights,  They feature with Energy Saving, Long Lifetime, Environment Friendly
