2ft 9W LED Grow Light for Microgreens
2ft 9W LED Grow Light for Microgreens
Model : TSGL8 Nx6.2 (0.6 m)
Length & Wattage : 2ft | 9W
Available Spectrums : Nx6.2, Nx4
IP Rating : IP54
Warranty : 24 months
Delivery Charges : 400Rs
The Nexsel TSGL8 Nx6.2 (0.6 m) (2ft 9W LED Grow Light for Microgreens) is a 9 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the Nx6.2 spectrum, is rated IP54 and measures 600 x 30 x 35 mm, 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.
Key Features, Benefits & Advantages
Top Features
- Red-rich Nx6.2 spectrum: 60% red, 25% green, 14% blue, no UV
- Stays cool thanks to the internal heat-dissipation design
- Eliminates ballasts and reflectors
- C3 and C2-type connectors; 80/20 diffuser
- Full spectrum 400-750 nm ePAR coverage
- PPE 2.2 to 2.4 µmol/J; 110 lm/W
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 220 to 240 |
| Input Power (Watts) | 9 |
| Input Current (Amps) | 0.038 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| THD | Less than 10% |
| Power Factor | 0.9 |
| Dimming Interface | Triac dimming (optional) |
| Surge Protection (kV) | 1 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 600 x 30 x 35 |
| Weight (kg / lb) | 0.15 / 0.33 |
| Material | Aluminium |
| Fixture Colour | White |
| Beam Angle / Light Distribution | 120° |
| Form Factor | Linear |
Performance Parameters
| PPE (µmol/J) | 2.2 to 2.4 |
| Luminous Efficacy (lm/W) | 110 |
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 55 |
| Operating Humidity (%) | Up to 95 |
| IP Rating | IP54 |
Spectrum Details
Photon flux distribution, measured per fixture.
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nx6.2 | 0% | 14% | 25% | 60% | 1% | 99 | 4081K | 70 | 0.6 | 4 |
Installation, Connectivity & Options
Mounting Options
- Holding Clamps
- Cable Tie
Connecting Options
- C3-type Connectors
- C2 White
- C2 Black
- Direct Wire
What it is and who it is for

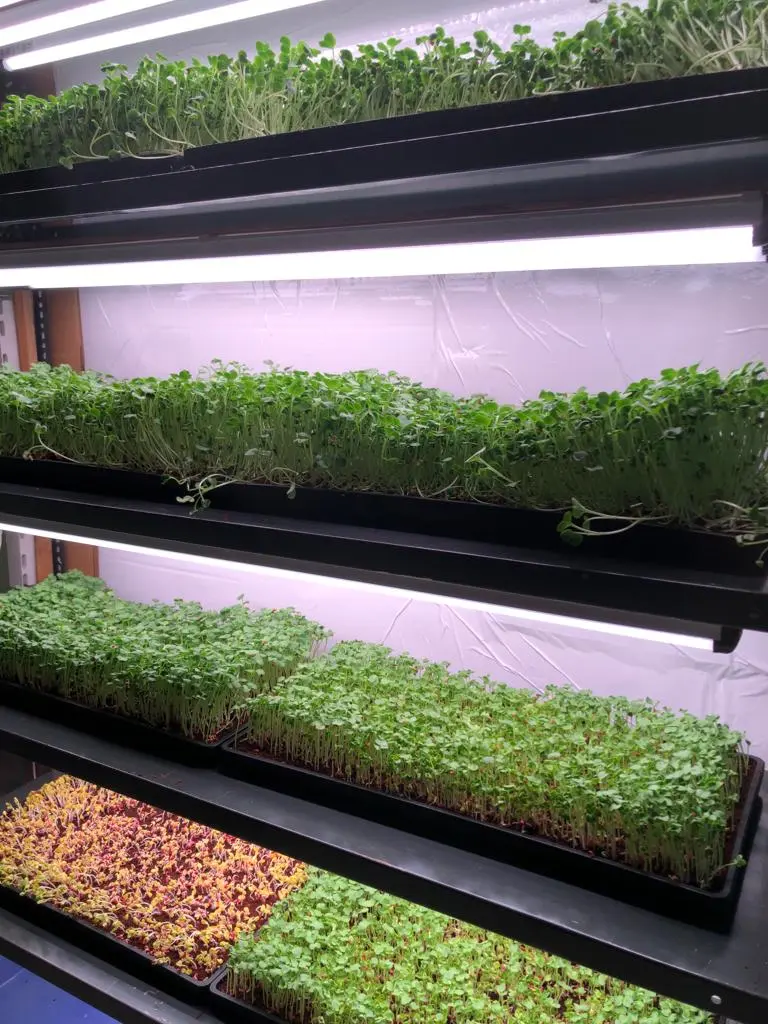

Microgreens grow in shallow trays under a short light path, so the fixture's footprint and heat matter more than raw wattage. The 2ft 9W TSGL8 is a 0.6 m linear bar with a 30 x 35 mm profile that mounts under a shelf and lights a half-length tray run.
This listing is the Nx6.2 spectrum: 60% red, 25% green and 14% blue with no UV, a red-rich mix suited to dense trays. One bar reads a peak of 43 at 30 cm and 38 at 45 cm in Nexsel's test grid, so you can size a shelf before you buy.
Nx6.2 is 14% blue, 25% green and 60% red with 1% far-red and 0% UV. ePAR is 99, colour temperature 4,081 K and CRI 70. Against the tissue-culture bar (Nx6.1: 52% red, 17% blue), Nx6.2 shifts further toward red. The red to far-red ratio is not published: the sheet prints 92, which does not match its own percentages. Nexsel also offers Nx4 on this page if you prefer a broader mix; compare them in the Spectrum Selection Guide. Specifications and spectrum source: Nexsel data sheet, TSGL8 Nx6.2 0.6 m (FG0101).
Who it suits:
- Microgreen growers working with short shelves and half-size trays
- Home and community microgreen shelves
- Sprouting and nursery rooms working with trays rather than deep beds
- Training programmes teaching indoor micro-farming
Light intensity at the plant (PPFD)
Measured under one luminaire over a 0.6 m x 0.3 m area: peak 43 at 30 cm (21 to 43 across the grid) and peak 38 at 45 cm (16 to 38). A 2.6-3.1 PPE version peaks at 51 at 30 cm. Values are PPFD in µmol/m²/s.
30 cm above the sensor
| Grid row | Left | Centre | Right |
|---|---|---|---|
| Row 1 | 21 | 29 | 22 |
| Row 2 | 36 | 43 | 37 |
| Row 3 | 24 | 28 | 24 |
45 cm above the sensor
| Grid row | Left | Centre | Right |
|---|---|---|---|
| Row 1 | 16 | 24 | 17 |
| Row 2 | 31 | 38 | 32 |
| Row 3 | 19 | 23 | 19 |
How to use these numbers: daily light integral (DLI, mol per m² per day) = PPFD x hours of light x 0.0036. Pick the PPFD your crop needs, then choose mounting height and number of fixtures to reach it. Measure intensity at tray level with a PAR meter / quantum sensor.
Installation and electrical
Hang or clamp the bar 30 cm above the tray with the holding clamps or a cable tie. Nx6.2 bars connect through C3 connectors or C2-type connectors (C2 white, C2 black, or direct wire). Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).
See the Hydroponics installation guide for mounting and wiring, and the TSGL8 model page for the model overview.
Choosing the right Nexsel model
TSGL8 Nx6.2 is the red-rich tray bar; this is the 0.6 m length. The 4 ft 18 W page uses the same spectrum. The tissue-culture bar is Nx6.1.
Warranty, delivery and returns
24-month standard warranty from the date of shipment (Nexsel Warranty Policy).
Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.
Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.
About Nexsel
Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].
Frequently Asked Questions
What grow light fits a short microgreen tray?
The 0.6 m (2 ft) TSGL8 bar covers a half-length tray or a 2 ft shelf. It uses 9 W and a 30 x 35 mm profile. For a different tray size, send the dimensions and target intensity to [email protected].
What spectrum is the microgreen bar?
Nx6.2: 60% red, 25% green and 14% blue, 1% far-red and no UV, with ePAR 99. It is more red-heavy than the Nx6.1 tissue-culture spectrum. Nexsel also lists an Nx4 option on this page.
How far above the tray should I hang it?
Nexsel's data is at 30 cm and 45 cm. One bar peaks at 43 at 30 cm and 38 at 45 cm, so the drop with height is gentle. Start at 30 cm and adjust by crop. Values are PPFD in umol per m2 per second.
How much does it cost to run?
Each bar draws 9 W, or 0.009 kW. At an example 16 hours a day it uses 0.144 kWh daily, about 4.3 kWh a month. Multiply by your tariff; set your own photoperiod.
Is the bar safe near a watering routine?
It is IP54 rated, meaning protected from dust and splashing water, and the sheet lists humidity up to 95%. Do not spray it directly or submerge it; keep trays below the fixture.
What are the warranty, delivery and returns terms?
Standard warranty is 24 months from shipment. Dispatch is within 7 working days with delivery inside 7 days of dispatch. Prices exclude GST. Returns are accepted within 7 days if the item is damaged, defective or not as described.
