4ft 18W LED Grow Light for Microgreens
4ft 18W LED Grow Light for Microgreens
Model : TSGL8 Nx6.2
Length & Wattage : 4ft | 18W
Available Spectrums : Nx6.2, Nx4
IP Rating : IP54
Warranty : 24 months
Delivery Charges : 400Rs
The Nexsel TSGL8 Nx6.2 is an 18 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the Nx6.2 spectrum, is rated IP54 and measures 1200 x 30 x 35 mm, with a 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.
Key Features, Benefits & Advantages
Top Features

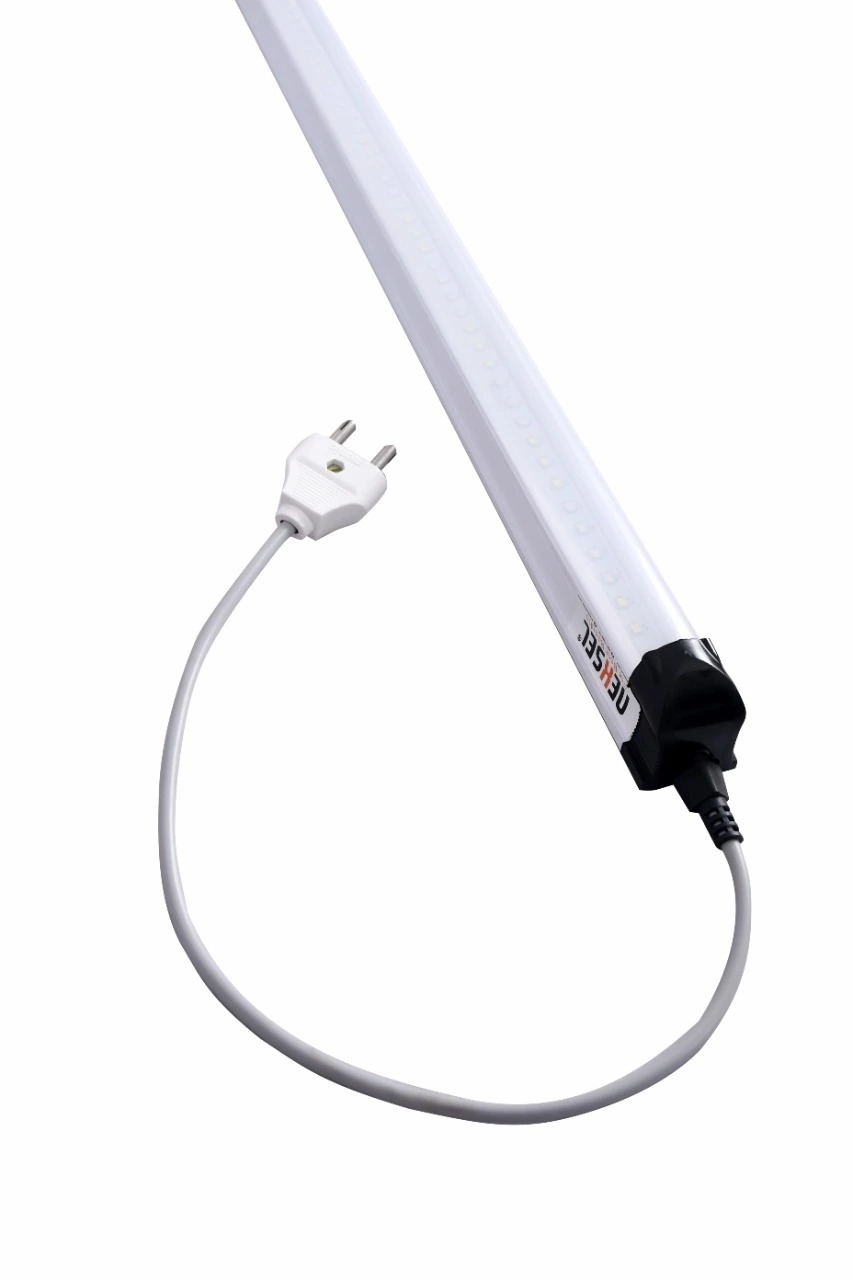

- 18 watts, 1.2 m linear bar
- Stays cool thanks to the internal heat-dissipation design
- Eliminates ballasts and reflectors
- C2-type connectors; 80/20 diffuser
- Full spectrum 400-750 nm ePAR coverage; 0% UV
- Backed with 24-month warranty
Benefits & Advantages
- Faster installation — Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).
- Fits under a shelf — The 30 x 35 mm profile mounts under a shelf and lights a full 1.2 m tray run.
- Splash-resistant — IP54 rated, protected from dust and splashing water, for humidity up to 95%.
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 220 to 240 |
| Input Power (Watts) | 18 |
| Input Current (Amps) | 0.075 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| THD | Less than 10% |
| Power Factor | 0.9 |
| Dimming Interface | Triac dimming (optional) |
| Surge Protection (kV) | 1 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 1200 x 30 x 35 |
| Weight (kg / lb) | 0.26 / 0.57 |
| Material | Aluminium |
| Fixture Colour | White |
| Beam Angle / Light Distribution | 120° |
| Form Factor | Linear |
Performance Parameters
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 55 |
| Operating Humidity (%) | Up to 95 |
| IP Rating | IP54 |
Spectrum Details
Photon flux distribution, measured per fixture.
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nx6.2 | 0 | 14% | 25% | 60% | 1% | 99 | 4081K | 70 | 0.6 | 4 |
Installation, Connectivity & Options
Mounting Options
- Holding Clamps
- Cable Ties
Connecting Options
- C2 White Connector
- C2 Black Connector
- C2(3) Direct-wire Connector
What it is and who it is for

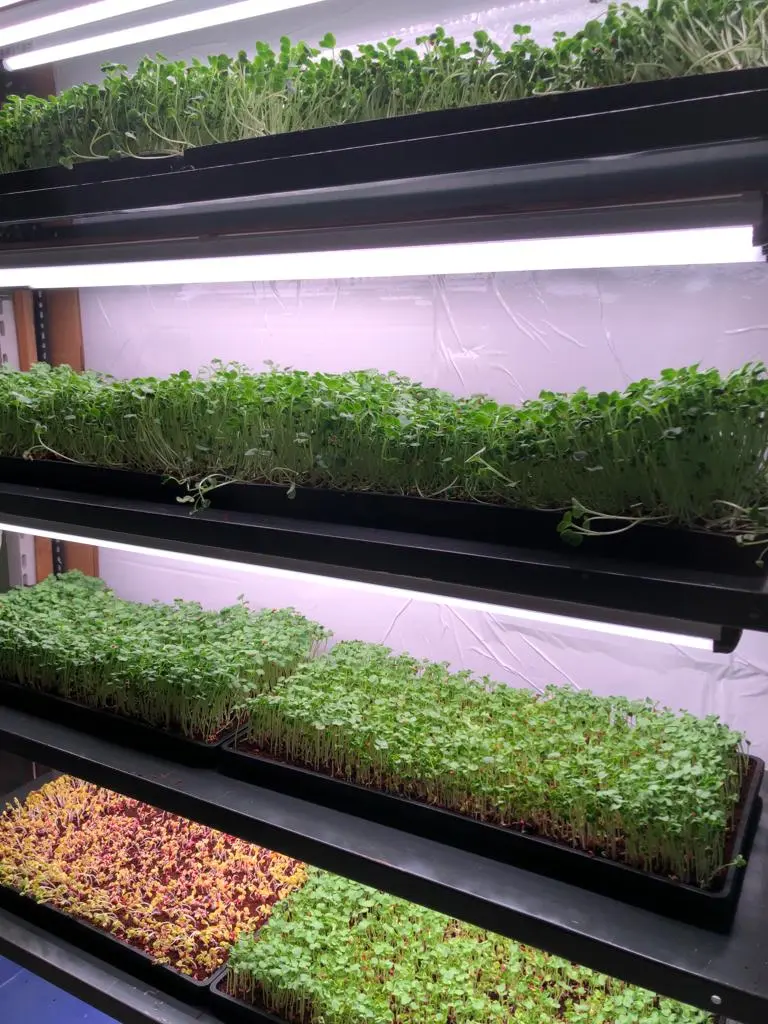

Microgreens grow in shallow trays under a short light path, so the fixture's footprint and heat matter more than raw wattage. The 4ft 18W TSGL8 is a 1.2 m linear bar with a 30 x 35 mm profile that mounts under a shelf and lights a full 1.2 m tray run.
This listing is the Nx6.2 spectrum: 60% red, 25% green and 14% blue with no UV, a red-rich mix suited to dense trays. Nexsel's layout for a 1.2 m x 0.6 m microgreen tray uses two bars. Compare Nx6.2 and Nx4 in the Spectrum Selection Guide.
Who it suits:
- Microgreen growers selling to restaurants and retail
- Home and community microgreen shelves
- Sprouting and nursery rooms working with trays rather than deep beds
- Training programmes teaching indoor micro-farming
Installation and electrical
Hang or clamp the bars 30 cm above the tray with the holding clamps or cable ties. Nx6.2 bars connect through C2-type connectors (C2 white, C2 black, or the C2(3) direct-wire connector). Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).
See the Hydroponics installation guide for mounting and wiring, and the TSGL8 model page for the model overview.
Choosing the right Nexsel model
TSGL8 Nx6.2 is the red-rich tray bar. The tissue-culture bar is Nx6.1; the general hydroponic bar is HYGL8 Nx1.1.
- 4ft 18W Grow Light for Tissue Culture
- 4ft 18W Grow Light for Leafy Vegetables
- 2ft 9W Grow Light for Microgreens
Measure intensity at tray level with a PAR meter / quantum sensor.
Warranty, delivery and returns
24-month standard warranty from the date of shipment.
Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.
Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.
About Nexsel
Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].
Frequently Asked Questions
How many 4 ft LED bars do I need for a microgreen tray?
Nexsel's published layout uses two Nx6.2 bars over a 1.2 m x 0.6 m tray at 30 cm. For a different tray size, send the dimensions and target intensity to [email protected].
What spectrum is the microgreen bar?
Nx6.2: 60% red, 25% green and 14% blue, 1% far-red and no UV, with ePAR 99. It is more red-heavy than the Nx6.1 tissue-culture spectrum. Nexsel also lists an Nx4 option on this page.
How far above the tray should I hang it?
Nexsel's data is measured at 30 cm and 45 cm. Start at 30 cm and adjust by crop, checking the intensity at tray level with a PAR meter.
How much does it cost to run?
Each bar draws 18 W. Two bars for 16 hours use 0.576 kWh a day, about 17.3 kWh a month. Multiply by your tariff; 16 hours is only an example photoperiod.
Is the bar safe near a watering routine?
It is IP54 rated, meaning protected from dust and splashing water, and the sheet lists humidity up to 95%. Do not spray it directly or submerge it; keep trays below the fixture.
What are the warranty, delivery and returns terms?
Standard warranty is 24 months from shipment. Dispatch is within 7 working days with delivery inside 7 days of dispatch. Prices exclude GST. Returns are accepted within 7 days if the item is damaged, defective or not as described.
