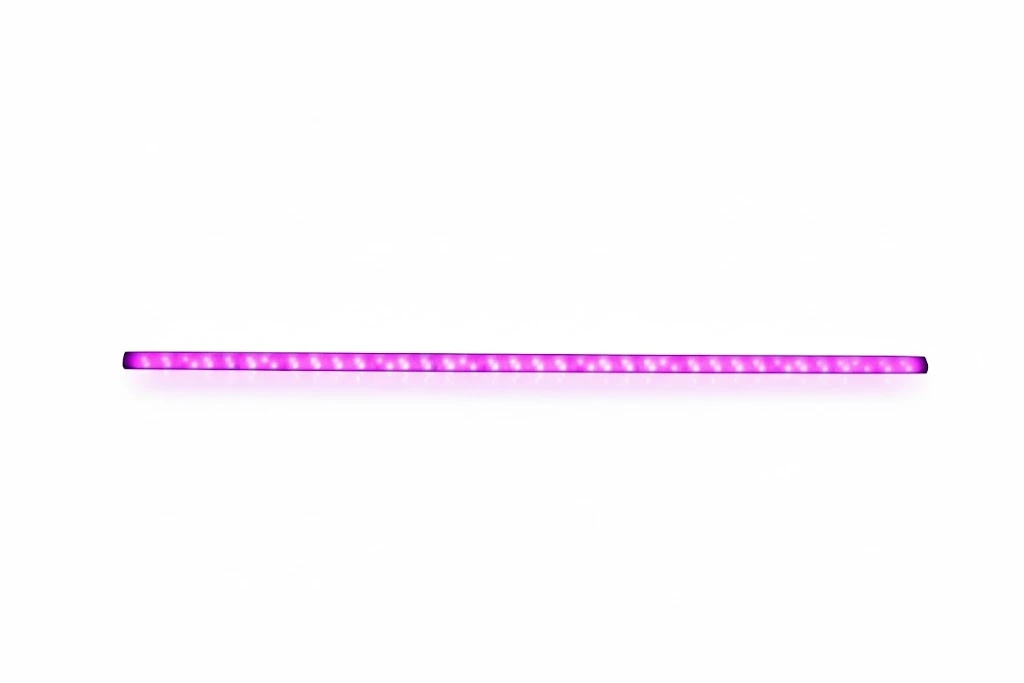

4ft 18W LED Grow Light for Leafy Vegetables
4ft 18W LED Grow Light for Leafy Vegetables
Model : HYGL8 Nx1.1
Length & Wattage : 4ft | 18W
Available Spectrums : Nx1.1, Nx4
IP Rating : IP54
Warranty : 24 months
Product Code : FG0004
Delivery Charges : 400Rs
The Nexsel HYGL8 Nx1.1 is an 18 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the Nx1.1 spectrum, is rated IP54 and measures 1200 x 30 x 35 mm, with a 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.
Key Features, Benefits & Advantages
Top Features
- Specially designed C3 connectors for chained runs
- 80/20 diffuser for an even line of light
- Full spectrum with IR and UV (390-730 nm)
- 100% flicker-free output (optional)
- PPE 2.2 to 2.4 µmol/J; 110 lm/W
- Backed with 24-month warranty
Benefits & Advantages
- Faster harvests, lower energy — Nexsel states 15% faster harvest cycles and 20% lower energy use at the same intensity (manufacturer claim).
- Tier-friendly — At 30 x 35 mm in section and 0.26 kg it slides under a rack shelf or hangs from a tier frame without adding bulk.
- Less wiring per tier — Bars chain with inter-connectors or F2F connectors; Nexsel's sheet quotes up to 80% less wiring and 60-70% faster installation (manufacturer figures).
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 220 to 240 |
| Input Power (Watts) | 18 |
| Input Current (Amps) | 0.075 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| THD | Less than 10% |
| Power Factor | 0.9 |
| Dimming Interface | Triac dimming (optional) |
| Surge Protection (kV) | 1 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 1200 x 30 x 35 |
| Weight (kg / lb) | 0.26 / 0.57 |
| Material | Aluminium |
| Fixture Colour | White |
| Beam Angle / Light Distribution | 120° |
| Form Factor | Linear |
Performance Parameters
| PPE (µmol/J) | 2.2 to 2.4 |
| Luminous Efficacy (lm/W) | 110 |
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 55 |
| Operating Humidity (%) | Up to 95 |
| IP Rating | IP54 |
Spectrum Details
Photon flux distribution, measured per fixture.
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nx1.1 | 1% | 30% | 25% | 37% | 7% | 92 | 12222K | 63 | 1.2 | 5.2 | 1.2 |
Installation, Connectivity & Options
Mounting Options
- Holding Clamps (supplied)
- Cable Tie
Connecting Options
- 2-pin Top Input
- Inter-connectors
- F2F Connectors
What it is and who it is for
The 4ft 18W HYGL8 is a 1.2 metre linear LED grow bar for indoor leafy production. At 30 x 35 mm in section and 0.26 kg it slides under a rack shelf or hangs from a tier frame without adding bulk, and its 120 degree beam spreads light across a 1.2 m run of tray.
This listing is the Nx1.1 version: a blue-and-red balanced spectrum with a small 1% UV component, specified by Nexsel for crops that respond to a stronger blue signal. The housing is aluminium and IP54-rated, so it tolerates the humidity of a grow room. Nexsel is a Pune-based manufacturer and ships across India. If you want a spectrum with no UV, compare Nx1.1 and Nx4 in the Spectrum Selection Guide.
Who it suits:
- Hydroponic and NFT growers running lettuce, spinach, kale, basil and amaranthus on racks
- Vertical-farm and container-farm operators who need a slim, tier-friendly bar
- Schools, labs and start-ups building a first indoor leafy-green rack
- Home hydroponic builders who want a mains-powered 1.2 m bar instead of bulbs
Installation and electrical
Mount with the supplied holding clamps or a cable tie. Power connects through a 2-pin top input; bars chain with inter-connectors or F2F connectors, which cuts wiring per tier (Nexsel's sheet quotes up to 80% less wiring and 60-70% faster installation than conventional fixtures - treat these as manufacturer figures). C3-type connectors are used on the HYGL8 family.
See the Hydroponics installation guide for mounting and wiring, and the HYGL8 model page for full model details.
Choosing the right Nexsel model
HYGL8 Nx1.1 18 W is the general-purpose leafy bar. The same bar in Nx1.1 also appears on the saffron page; choose by crop, not by hardware.
- 4ft 18W Grow Light for Microgreens
- 4ft 18W Grow Light for Saffron
- 4ft 36W Grow Light for Strawberry
- 3ft 14W Grow Light for Leafy Vegetables
Measure intensity at canopy with a PAR meter / quantum sensor. Related reading: Vegetable Production Using Indoor Hydroponics System, Hydroponics with LED Lights in UAE, Lighting Control Systems for CEA and Container Farming in India: Setup, Crops & Profitability.
Warranty, delivery and returns
24-month standard warranty from the date of shipment.
Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.
Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.
About Nexsel
Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].
Frequently Asked Questions
How much electricity does a 4 ft 18 W grow bar use?
It draws 18 W, or 0.018 kW. Run for 16 hours a day it uses 0.288 kWh daily, about 8.6 kWh a month. Multiply that by your electricity tariff to get the running cost. The 16-hour day is only an example; set your own photoperiod.
How high should I mount it above lettuce or spinach?
Nexsel's measurements are taken at 30 cm and 45 cm, and intensity falls as the bar is raised. Hang it closer when you need more intensity and raise it as plants grow. Check the crop's own light needs before fixing the height.
Does the Nx1.1 spectrum contain UV?
Yes. Nexsel's data sheet lists 1% UV in Nx1.1, alongside 30% blue, 25% green, 37% red and 7% far-red. If you do not want any UV, ask for the Nx4 option listed on this page or compare spectra in the Spectrum Selection Guide.
Is IP54 enough for a humid grow room?
IP54 means the bar is protected against dust ingress and splashing water from any direction, and the data sheet lists operating humidity up to 95%. It is not submersible and should not be hosed down, so keep it clear of direct water jets and nutrient spray.
Can I dim the HYGL8 bar?
Triac dimming and fully flicker-free output are listed as options on the data sheet. State the option you need when you order or contact Nexsel on 98817 98822, because they are not the default configuration.
How many bars do I need per shelf?
It depends on the intensity you want. Send your shelf length, width and crop to [email protected] and the team will advise a layout.
What warranty does it carry and how fast does it ship?
The standard warranty is 24 months from the date of shipment. Orders dispatch within 7 working days and arrive within 7 days of dispatch. Prices exclude GST, and returns are accepted within 7 days if the item is damaged, defective or not as described.
