4ft 36W LED Grow Light for Strawberry
4ft 36W LED Grow Light for Strawberry
Model : HYGL8.1 NxB
Length & Wattage : 4ft | 36W
Available Spectrums : NxB
IP Rating : IP54
Warranty : 24 months
Product Code : FG0037
Delivery Charges : 400Rs
The Nexsel HYGL8.1 NxB (4ft 36W LED Grow Light for Strawberry) is a 36 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the NxB spectrum, is rated IP54 and measures 1200 x 30 x 35 mm, 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.
Key Features, Benefits & Advantages
Top Features
- Balanced blue-red spectrum designed for berries (no green, no UV)
- 36 W in a 1.2 m, 0.55 kg bar; 120 degree beam

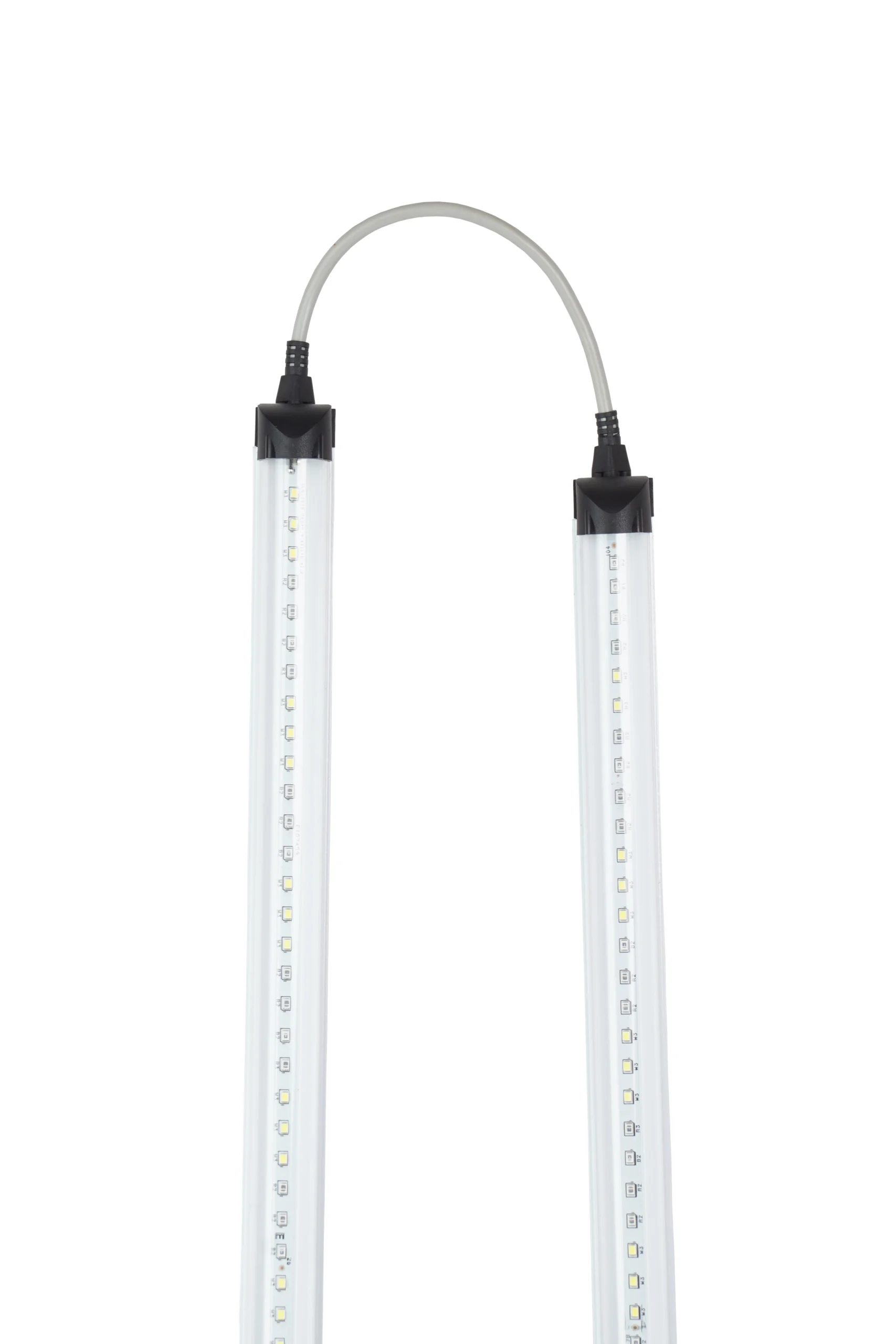

- Specially designed C3 connectors; F2F connectors
- 80/20 diffuser; flicker-free output (optional)
- PPE 2.2 to 2.4 µmol/J; 120 lm/W
- Backed with 24-month warranty
Benefits & Advantages
- Better coloration, more fruits — Nexsel states better coloration, proper leaf texture, more fruits and better-quality produce (manufacturer claims).
- Twice the output of the 18 W bar — Same 1.2 m, 30 x 35 mm body as the 18 W HYGL8 at twice the power, so it fits the same brackets and rack rails.
- Less wiring per layer — Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 220 to 240 |
| Input Power (Watts) | 36 |
| Input Current (Amps) | 0.15 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| THD | Less than 10% |
| Power Factor | 0.9 |
| Dimming Interface | Triac dimming (optional) |
| Surge Protection (kV) | 1 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 1200 x 30 x 35 |
| Weight (kg / lb) | 0.55 / 1.21 |
| Material | Aluminium |
| Fixture Colour | White |
| Beam Angle / Light Distribution | 120° |
| Form Factor | Linear |
Performance Parameters
| PPE (µmol/J) | 2.2 to 2.4 |
| Luminous Efficacy (lm/W) | 120 |
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 55 |
| Operating Humidity (%) | Up to 95 |
| IP Rating | IP54 |
Spectrum Details
Photon flux distribution, measured per fixture.
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NxB | 0 | 25% | 0 | 69% | 6% | 94 | 3065K | 0 | 3 |
Installation, Connectivity & Options
Mounting Options
- Holding Clamps
Connecting Options

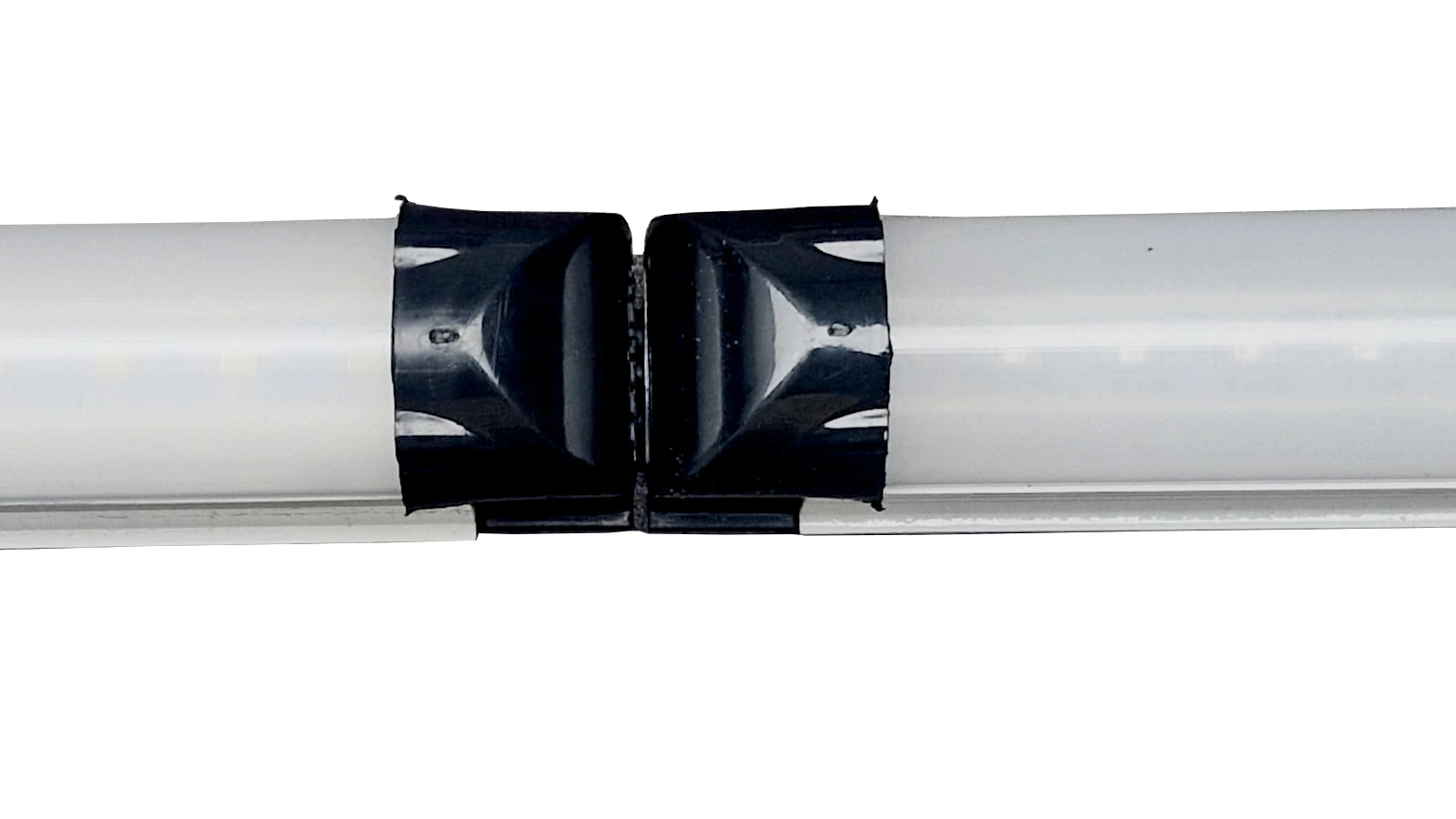

- C3 Connectors

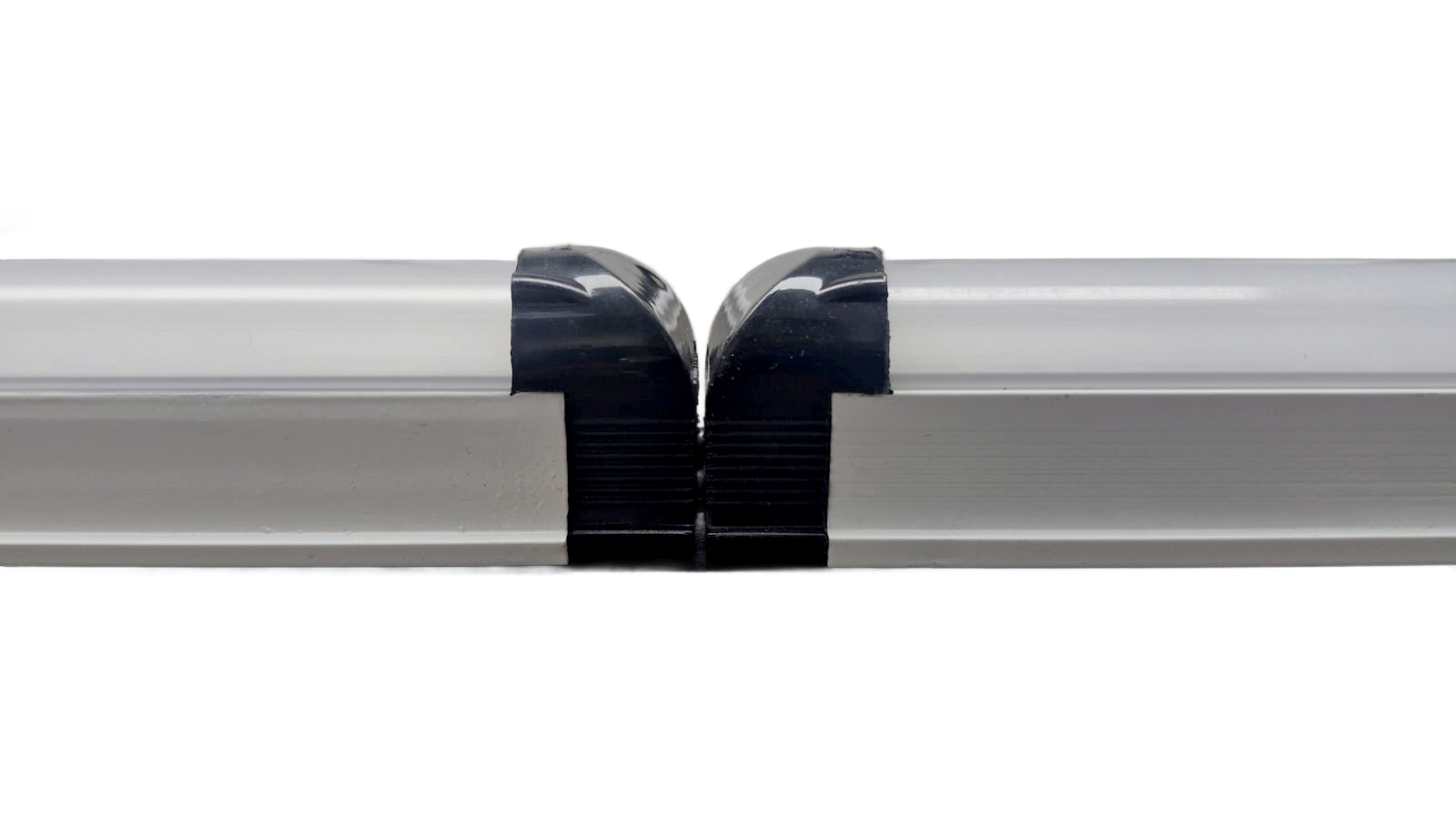

- F2F Connectors
What it is and who it is for
The 4ft 36W HYGL8.1 doubles the output of the 18 W HYGL8 in the same 1.2 m, 30 x 35 mm bar. It is the fixture Nexsel lists for berries, on the NxB spectrum that the data sheet describes as a balanced spectrum specially designed for berries with ePAR coverage from 400 to 750 nm.
Because it is a bar, it mounts along a gutter or rack row, and Nexsel's measurements show a peak of 88 at 30 cm for one fixture (98 for the higher-efficiency version). Nexsel lists better coloration, proper leaf texture, more fruits and better-quality produce among the benefits (manufacturer claims).
Who it suits:

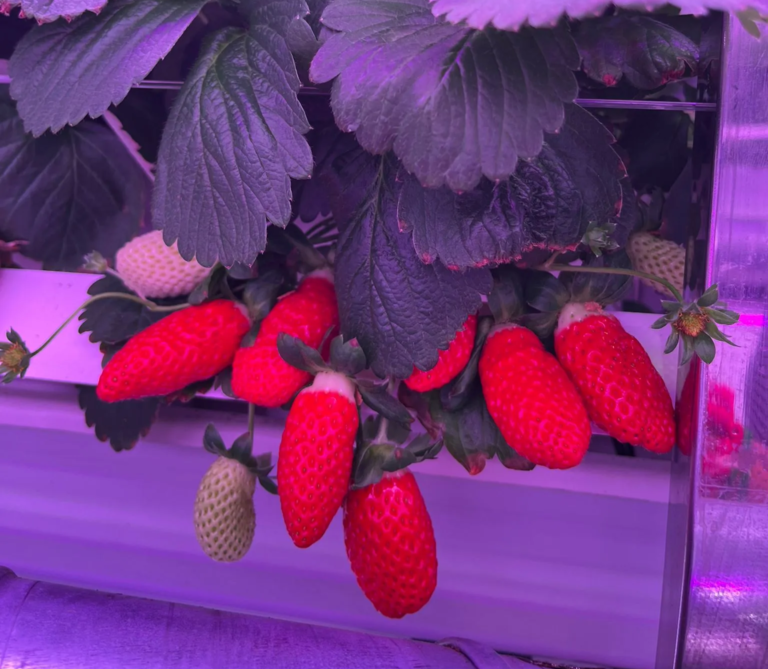

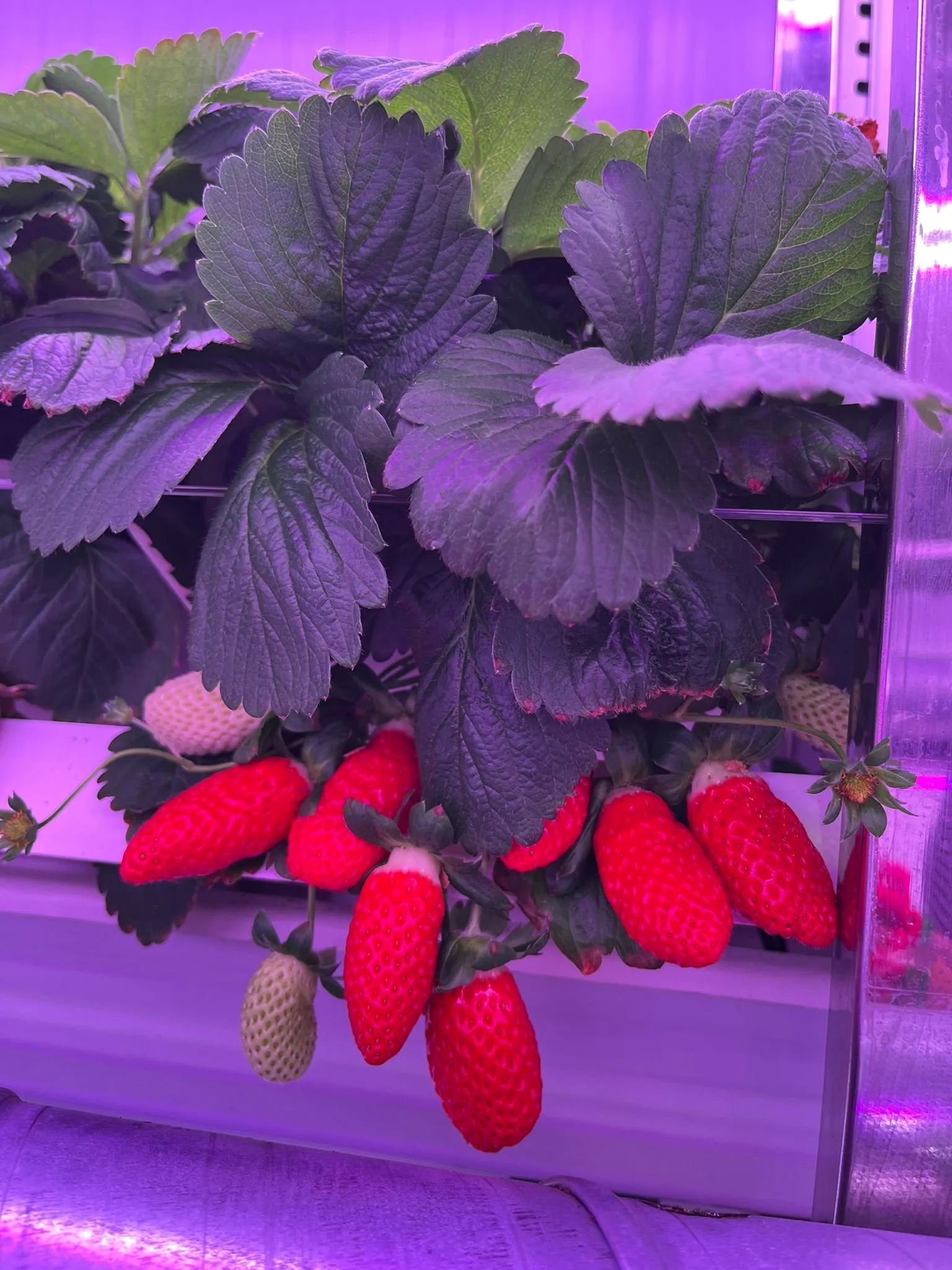

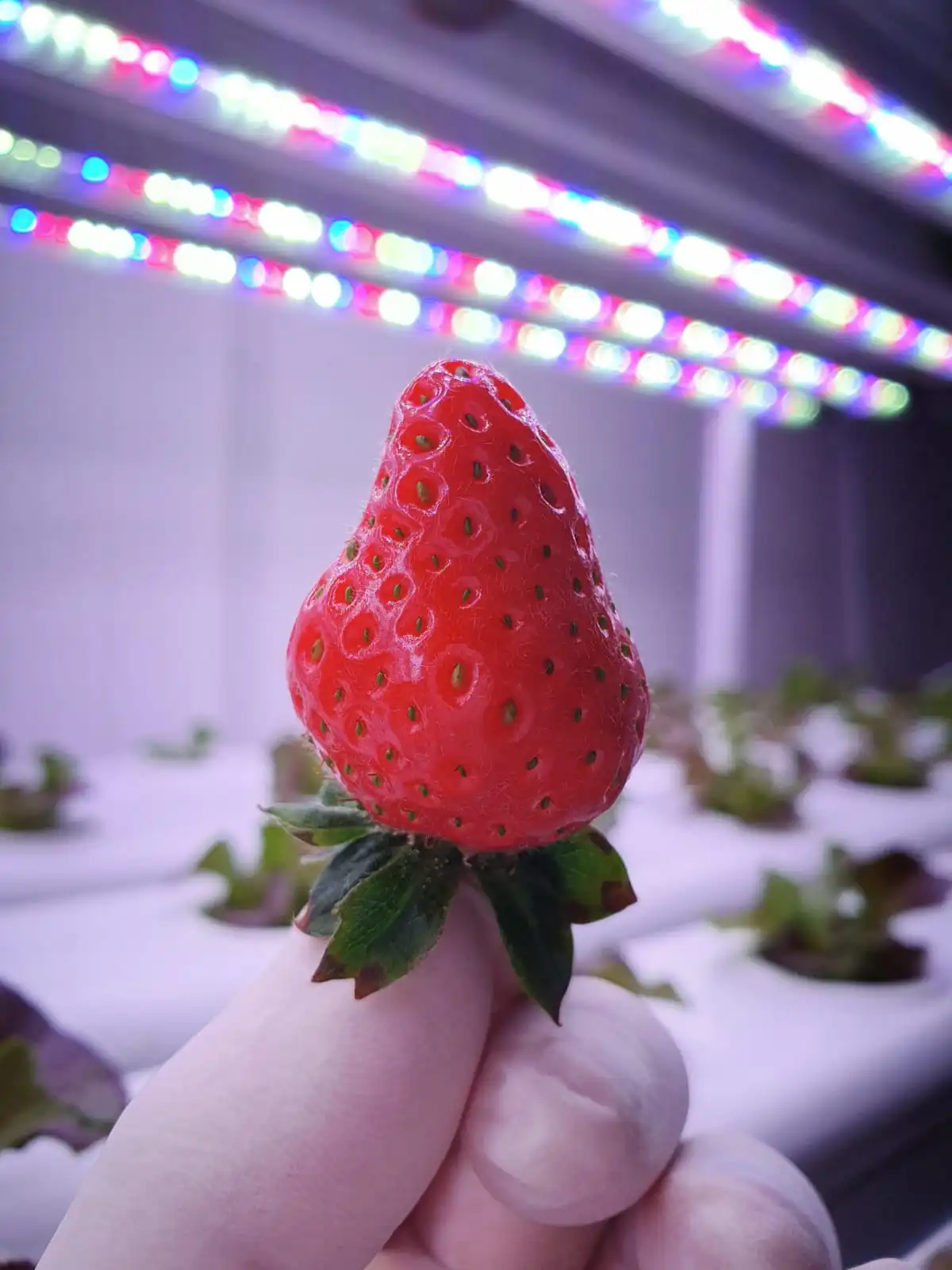

- Indoor and hydroponic strawberry growers in vertical or rack systems
- Greenhouse growers adding supplemental light for berry crops
- Berry start-ups and research growers testing blue-red recipes
- Buyers comparing a 36 W bar with the 18 W HYGL8 range
About the NxB spectrum

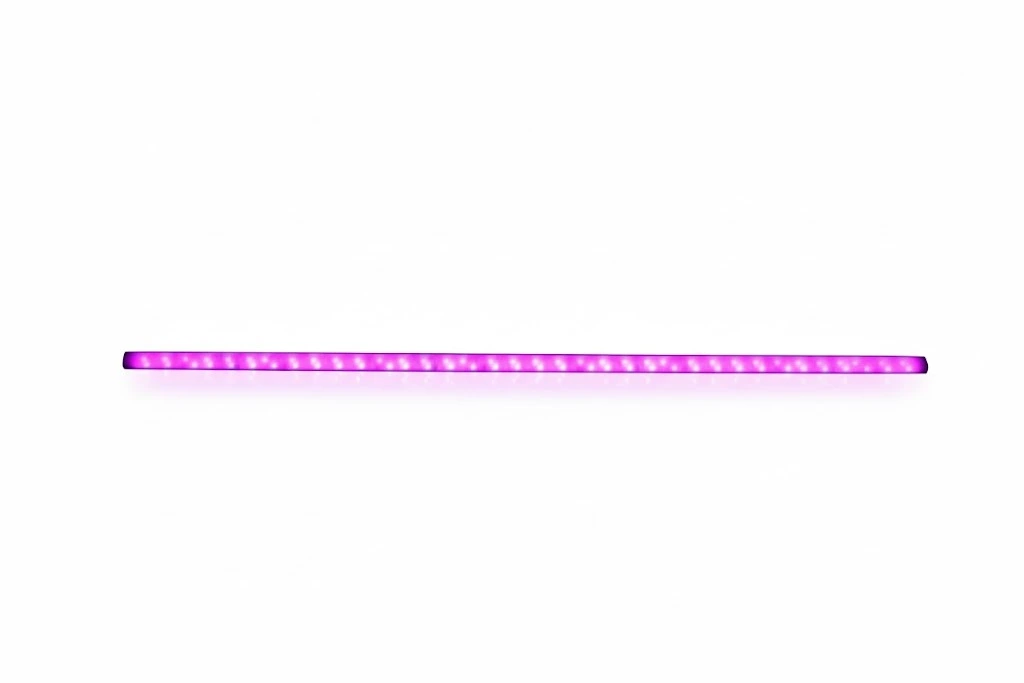

NxB is 25% blue, 69% red and 6% far-red with no green and no UV; ePAR is 94 and colour temperature is 3,065 K. The red-and-blue-only mix makes the light look magenta to people, which is normal for berry recipes. With no green, the colour rendering index on the sheet is 0 (Nexsel confirmed this is correct). The blue-to-green ratio and the red to far-red ratio are not published: green is 0%, so a ratio is meaningless, and the sheet's printed ratios do not match its own percentages.
Source: Nexsel data sheet, HYGL8.1 NxB (FG0037). Compare spectra in the Spectrum Selection Guide.
Light intensity at the plant (PPFD)
Measured under one luminaire over a 1.2 m x 0.3 m area: peak 88 at 30 cm (42 to 88 across the grid) and peak 51 at 45 cm (29 to 51). A 2.6-3.1 PPE version peaks at 98 at 30 cm and 61 at 45 cm. Values are PPFD in µmol/m²/s.
30 cm above the sensor
| Grid row | Left | Centre | Right |
|---|---|---|---|
| Row 1 | 46 | 54 | 45 |
| Row 2 | 73 | 88 | 72 |
| Row 3 | 49 | 60 | 42 |
45 cm above the sensor
| Grid row | Left | Centre | Right |
|---|---|---|---|
| Row 1 | 30 | 43 | 32 |
| Row 2 | 38 | 51 | 41 |
| Row 3 | 29 | 41 | 30 |
How to use these numbers: daily light integral (DLI, mol per m² per day) = PPFD x hours of light x 0.0036. Pick the PPFD your crop needs, then choose mounting height and number of fixtures to reach it. Measure intensity at canopy with a PAR meter / quantum sensor.
Installation and electrical

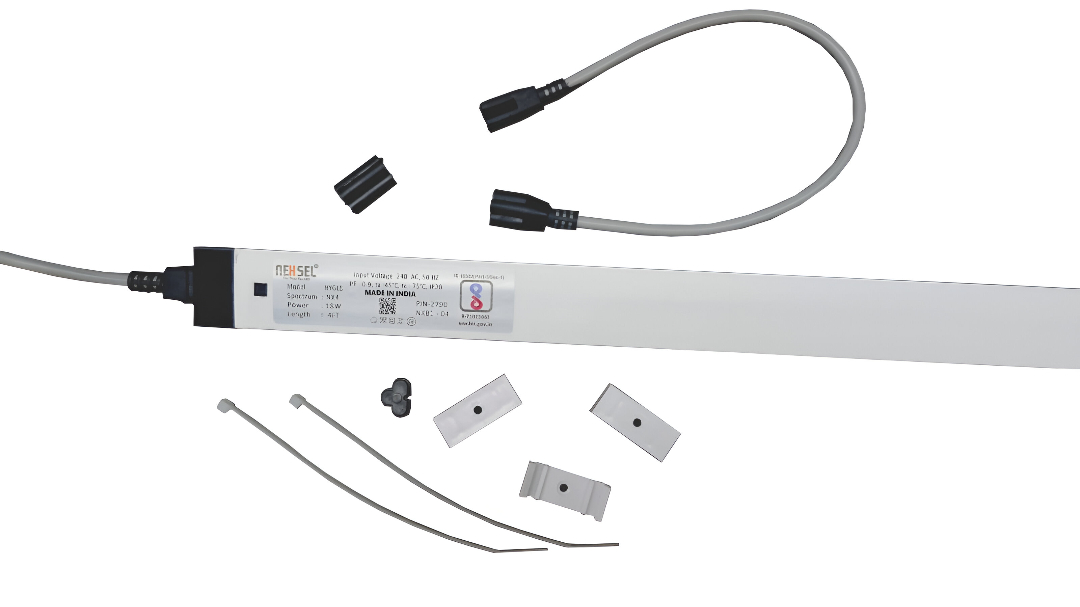

Mount with holding clamps and connect with C3-type connectors and F2F connectors. The bar uses the same 1200 x 30 x 35 mm profile as the HYGL8 range, so it fits the same brackets and rack rails. Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).
See the HYGL8.1 model page for full model details.
Choosing the right Nexsel model
The 36 W NxB is the berry bar. The 18 W HYGL8 Nx1.1 is a general leafy bar at half the power; the 36 W Nx4B is the ornamental-rack bar.
- 4ft 18W Grow Light for Leafy Vegetables
- 4ft 36W Grow Light for Ornamental Plants (Rack)
- 4ft 18W Grow Light for Saffron
Related reading: Full Spectrum Grow Light for Indoor Strawberries, Ultimate Guide to Indoor Strawberry Lighting and Optimized Lighting for Strawberries: Key to Higher Yield & Quality.
Warranty, delivery and returns
24-month standard warranty from the date of shipment (Nexsel Warranty Policy).
Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.
Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.
About Nexsel
Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].
Frequently Asked Questions
What light colour is best for strawberries?
Strawberry recipes commonly rely on blue and red light. Nexsel's NxB spectrum is 25% blue and 69% red with 6% far-red and no green, designed for berries. Validate the recipe on your own variety before scaling a room.
How many 36 W bars do I need for strawberries?
Nexsel advises about 14 hours of light, about 1.5 ft between shelves, and three 36 W bars (108 W) over a 1.2 m x 0.3 m tray. Treat this as Nexsel's starting recommendation and adjust for your variety and stage.
How bright is the 4 ft 36 W bar?
Nexsel measured one bar at 30 cm: peak 88 with readings of 42 to 88 over a 1.2 m x 0.3 m area, and peak 51 at 45 cm. These are PPFD values in umol per m2 per second.
How much does it cost to run?
36 W is 0.036 kW. At 14 hours a day, Nexsel's suggested strawberry photoperiod, one bar uses 0.504 kWh daily, about 15 kWh a month. Multiply by your tariff to get the running cost.
How is it different from the 18 W HYGL8 bar?
It has the same 1.2 m body but twice the power (36 W against 18 W), draws 0.15 A instead of 0.075 A, weighs 0.55 kg against 0.26 kg, and uses the NxB berry spectrum rather than Nx1.1.
Is it suitable for humid rooms?
It is IP54 rated: protected against dust and splashing water. The sheet lists operating humidity up to 95%. Keep it out of direct spray. The standard warranty is 24 months and orders dispatch within 7 working days.
