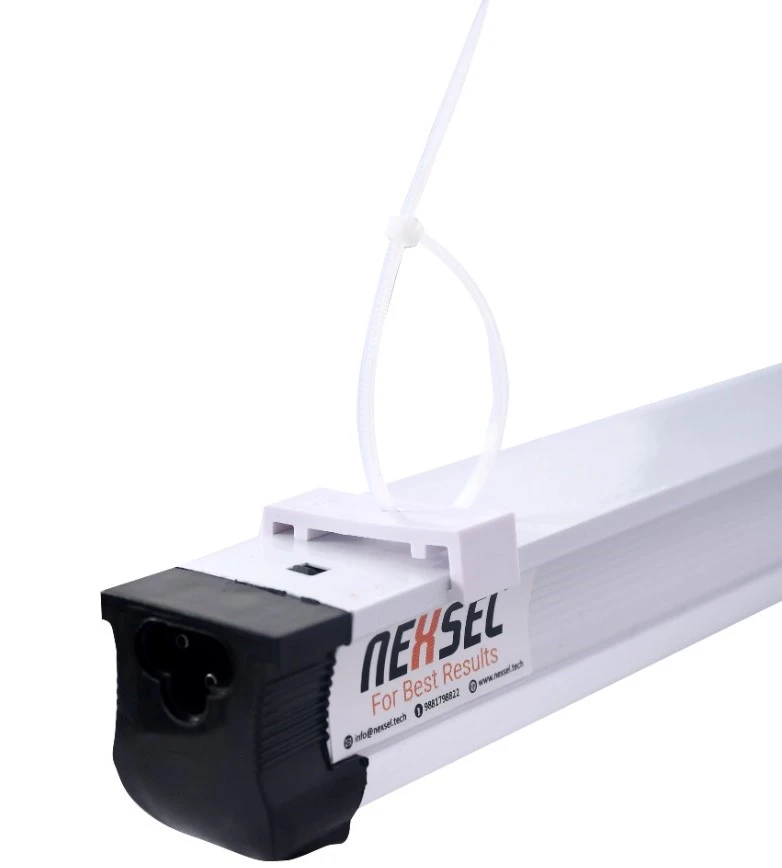

4ft 36W LED Grow Light for Ornamental Plants (Rack)

Nexsel HYGL8.1 4 ft 36W LED grow bar under a shelf of ornamental plants

4ft 36W LED Grow Light for Ornamental Plants (Rack)

In Stock

Model : HYGL8.1 Nx4B

Length & Wattage : 4ft | 36W

Available Spectrums : Nx4B

IP Rating : IP54

Warranty : 24 months

Product Code : FG0041

Delivery Charges : 400Rs

The Nexsel HYGL8.1 Nx4B (4ft 36W LED Grow Light for Ornamental Plants (Rack)) is a 36 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the Nx4B spectrum, is rated IP54 and measures 1200 x 30 x 35 mm, 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.

Key Features, Benefits & Advantages

Top Features

  • Broad spectrum with ePAR coverage (400-750 nm)
  • 36 W in a 1.2 m, 0.55 kg bar; 120 degree beam
  • C3 connectors; 80/20 diffuser
  • PPE 2.2 to 2.4 µmol/J; 120 lm/W
  • Backed with 24-month warranty

Benefits & Advantages

  • Flicker-free light (optional) — Nexsel states flicker-free output supports better photosynthesis (manufacturer claim).
  • Lower energy use — Nexsel states 20% less electricity for the same intensity (manufacturer claim).
  • Display-quality light — Nexsel lists better coloration, proper leaf texture and uniform light quality for this bar (manufacturer claims).

Technical Specifications

Electrical Parameters

Input Voltage (V AC) 220 to 240
Input Power (Watts) 36
Input Current (Amps) 0.15
Frequency (Hz) 50
Light Source SMD LED
THD Less than 10%
Power Factor 0.9
Dimming Interface Triac dimming (optional)
Surge Protection (kV) 1

Mechanical Parameters

Dimensions (L×W×H) mm 1200 x 30 x 35
Weight (kg / lb) 0.55 / 1.21
Material Aluminium
Fixture Colour White
Beam Angle / Light Distribution 120°
Form Factor Linear

Performance Parameters

PPE (µmol/J) 2.2 to 2.4
Luminous Efficacy (lm/W) 120
LED Lifespan (Hrs) 50,000
Certifications BIS, CE, RoHS

Environmental Parameters

Operating Temperature (°C) 0 to 55
Operating Humidity (%) Up to 95
IP Rating IP54

Installation, Connectivity & Options

Mounting Options

  • Holding Clamps

Connecting Options

  • 2-pin Top Input
  • Inter-connectors

What it is and who it is for

Ornamental plants on shelves need light that is even along a row and looks natural to people walking past. The 4ft 36W HYGL8.1 is a 1.2 m, 30 x 35 mm aluminium bar on Nx4B, a broad 400 to 750 nm ePAR spectrum, that mounts under a shelf and lights the full run.

Nexsel lists better coloration, proper leaf texture and uniform light quality for this bar (manufacturer claims), plus optional flicker-free output. Its published coverage is a peak of 88 at 30 cm for one fixture (99 for the higher-efficiency version), so you can size how many bars a shelf needs.

Who it suits:

  • Nursery and garden-centre display racks
  • Houseplant and indoor-garden shelf builders
  • Retail and hospitality plant displays
  • Growers of ornamental foliage and flowering pot plants

Spectrum - Nx4B

The Nx4B spectrum is described on the data sheet as a broad spectrum with ePAR coverage from 400 to 750 nm. Detailed percentages, colour temperature, CRI and ratios will be published once Nexsel issues its corrected data sheet. Compare spectra in the Spectrum Selection Guide.

Light intensity at the plant (PPFD)

Measured under one luminaire over a 1.2 m x 0.3 m area: peak 88 at 30 cm (38 to 88) and peak 48 at 45 cm (26 to 48). A 2.6-3.1 PPE version peaks at 99 and 58. Values are PPFD in µmol/m²/s.

30 cm above the sensor

Grid rowLeftCentreRight
Row 1384939
Row 2698868
Row 3395040

45 cm above the sensor

Grid rowLeftCentreRight
Row 1283927
Row 2324833
Row 3264028

How to use these numbers: daily light integral (DLI, mol per m² per day) = PPFD x hours of light x 0.0036. Pick the PPFD your plants need, then choose mounting height and number of fixtures to reach it. Measure intensity at shelf level with a PAR meter / quantum sensor.

Installation and electrical

Mount with holding clamps; power enters through a 2-pin top input and bars chain with inter-connectors. The 1.2 m profile fits standard shelf lengths, and Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).

See the HYGL8.1 model page for full model details.

Choosing the right Nexsel model

The 36 W Nx4B bar is the rack and display bar. The 36 W NxB bar is the berry bar; the 18 W HYGL8 bars are lower-power options.

Related reading: Indoor Gardening: Techniques, Benefits and Best Practices.

Warranty, delivery and returns

24-month standard warranty from the date of shipment (Nexsel Warranty Policy).

Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.

Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.

About Nexsel

Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].

Frequently Asked Questions

What grow light is best for a shelf of ornamental plants?

A linear bar gives an even strip of light along a shelf. The HYGL8.1 36 W bar is 1.2 m long and 30 x 35 mm in section, uses the broad Nx4B spectrum (400 to 750 nm ePAR) and is designed to mount under a shelf.

How bright is the bar at 30 cm?

Nexsel measured peak 88 at 30 cm for one bar (38 to 88 across a 1.2 m x 0.3 m area), and peak 48 at 45 cm. These are PPFD values in umol per m2 per second; use them to size how many bars a rack needs.

How much does it cost to run?

36 W is 0.036 kW. For an example 12 hours a day it uses 0.432 kWh daily, about 13 kWh a month. Multiply by your tariff; set your own photoperiod.

Is the 36 W bar different from the 18 W bar?

Yes. It has twice the power (36 W against 18 W), draws 0.15 A against 0.075 A, and weighs 0.55 kg against 0.26 kg. Both share the 1200 x 30 x 35 mm profile and IP54 rating.

Is it safe to use in indoor displays?

It is IP54 rated, meaning dust-protected and splash-resistant, and certifications on the data sheet are BIS, CE and RoHS. Keep it out of direct spray and install it by the connector guide.

What are the warranty, dispatch time and returns?

The standard warranty is 24 months. Orders dispatch within 7 working days and arrive within 7 days of dispatch. Prices exclude GST. Returns are accepted within 7 days if the item is damaged, defective or not as described.
