2ft 9W LED Grow Light for Tissue Culture
2ft 9W LED Grow Light for Tissue Culture
Model : TSGL8 Nx6.1 (0.6 m)
Length & Wattage : 2ft | 9W
Available Spectrums : Nx6.1
IP Rating : IP54
Warranty : 24 months
Product Code : FG0099
Delivery Charges : 400Rs
The Nexsel TSGL8 Nx6.1 (0.6 m) is a 9 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the Nx6.1 spectrum, is rated IP54 and measures 600 x 30 x 35 mm, with a 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.
Key Features, Benefits & Advantages
Top Features
- Stays cool thanks to the internal heat-dissipation design
- Eliminates the need for ballasts and reflectors
- Full spectrum 400-750 nm ePAR coverage; 0% UV
- 80/20 diffuser and specially designed C3 connectors
- PPE 2.2 to 2.4 µmol/J; 110-130 lm/W
- Backed with 24-month warranty
Benefits & Advantages
- Lower AC load — Up to 25% lower AC load (manufacturer claim).
- Simpler rack wiring — Nexsel states up to 80% less wiring per layer and 60-70% less installation time (manufacturer figures).
- Fluorescent-tube replacement — One 0.6 m bar with a slim 30 x 35 mm profile replaces a tube-and-ballast set on a short shelf.
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 220 to 240 |
| Input Power (Watts) | 9 |
| Input Current (Amps) | 0.038 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| THD | Less than 10% |
| Power Factor | 0.9 |
| Dimming Interface | Triac dimming (optional) |
| Surge Protection (kV) | 1 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 600 x 30 x 35 |
| Weight (kg / lb) | 0.15 / 0.33 |
| Material | Aluminium |
| Fixture Colour | White |
| Beam Angle / Light Distribution | 120° |
| Form Factor | Linear |
Performance Parameters
| PPE (µmol/J) | 2.2 to 2.4 |
| Luminous Efficacy (lm/W) | 110 to 130 |
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 55 |
| Operating Humidity (%) | Up to 95 |
| IP Rating | IP54 |
Spectrum Details
Photon flux distribution, measured per fixture.
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nx6.1 | 0 | 17% | 30% | 52% | 1% | 99 | 4174K | 83 | 0.6 | 3 |
Installation, Connectivity & Options

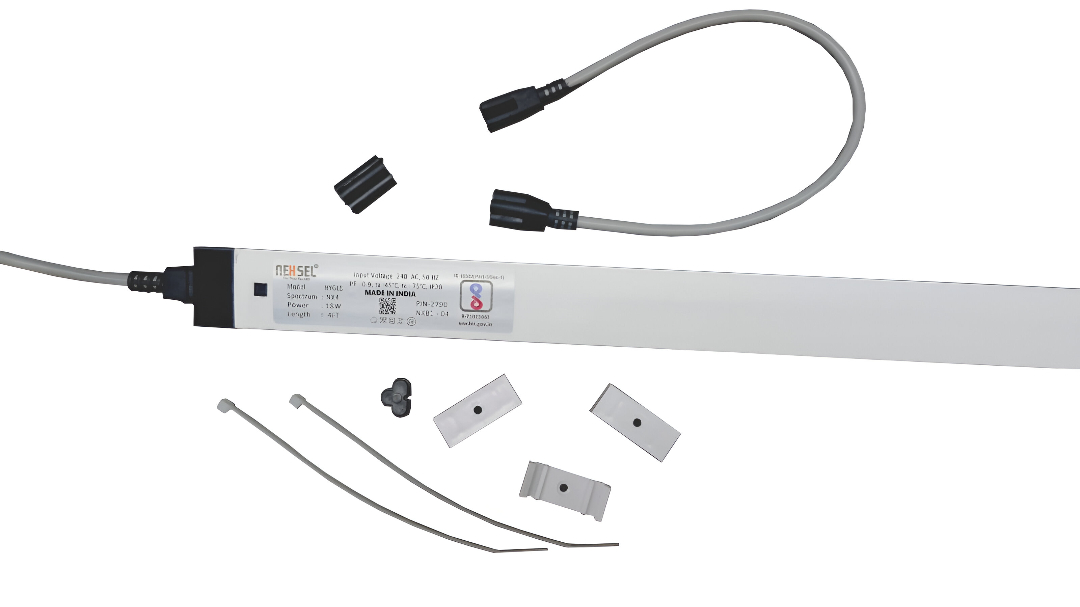

Mounting Options
- Holding Clamps
- Cable Tie

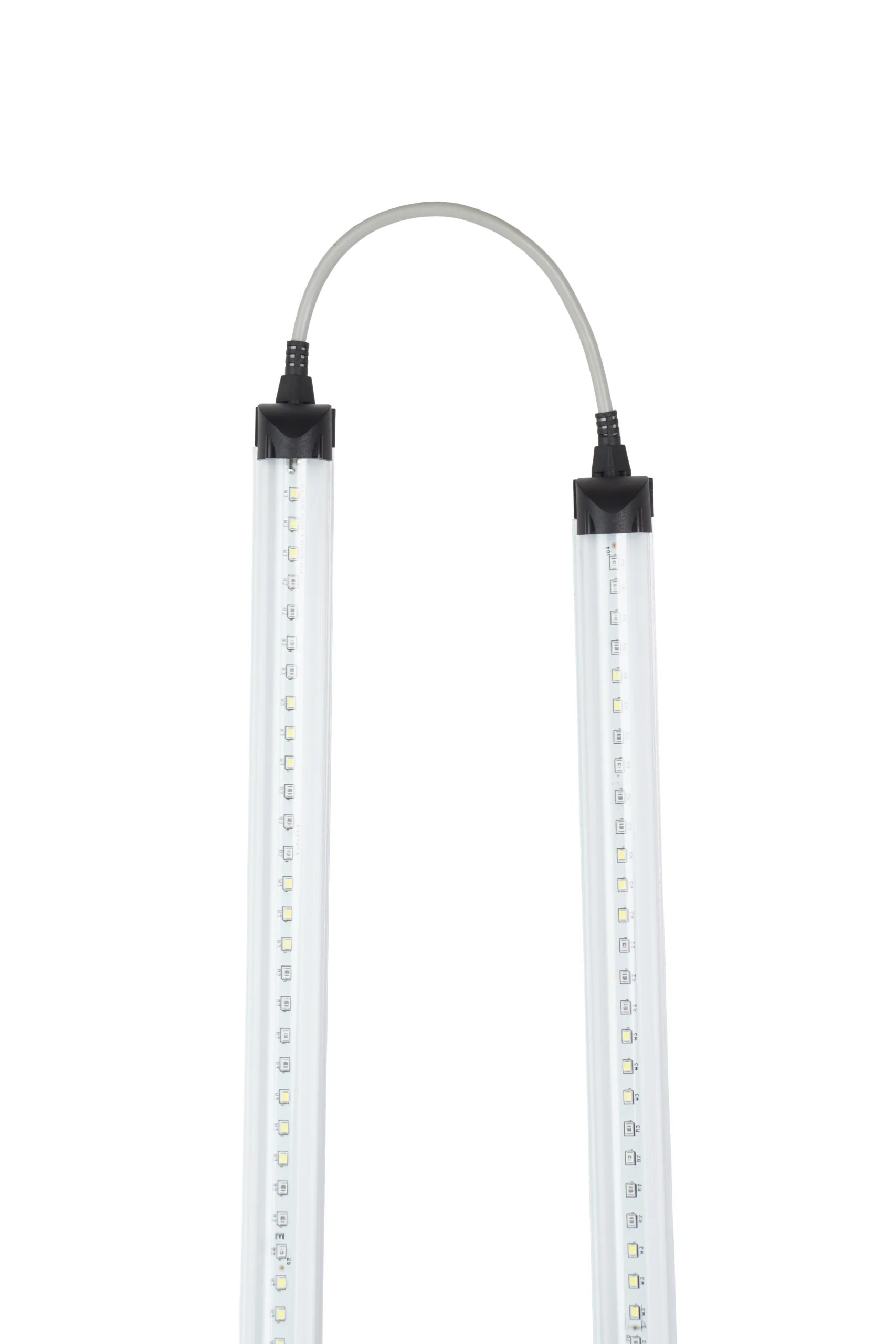

Connecting Options

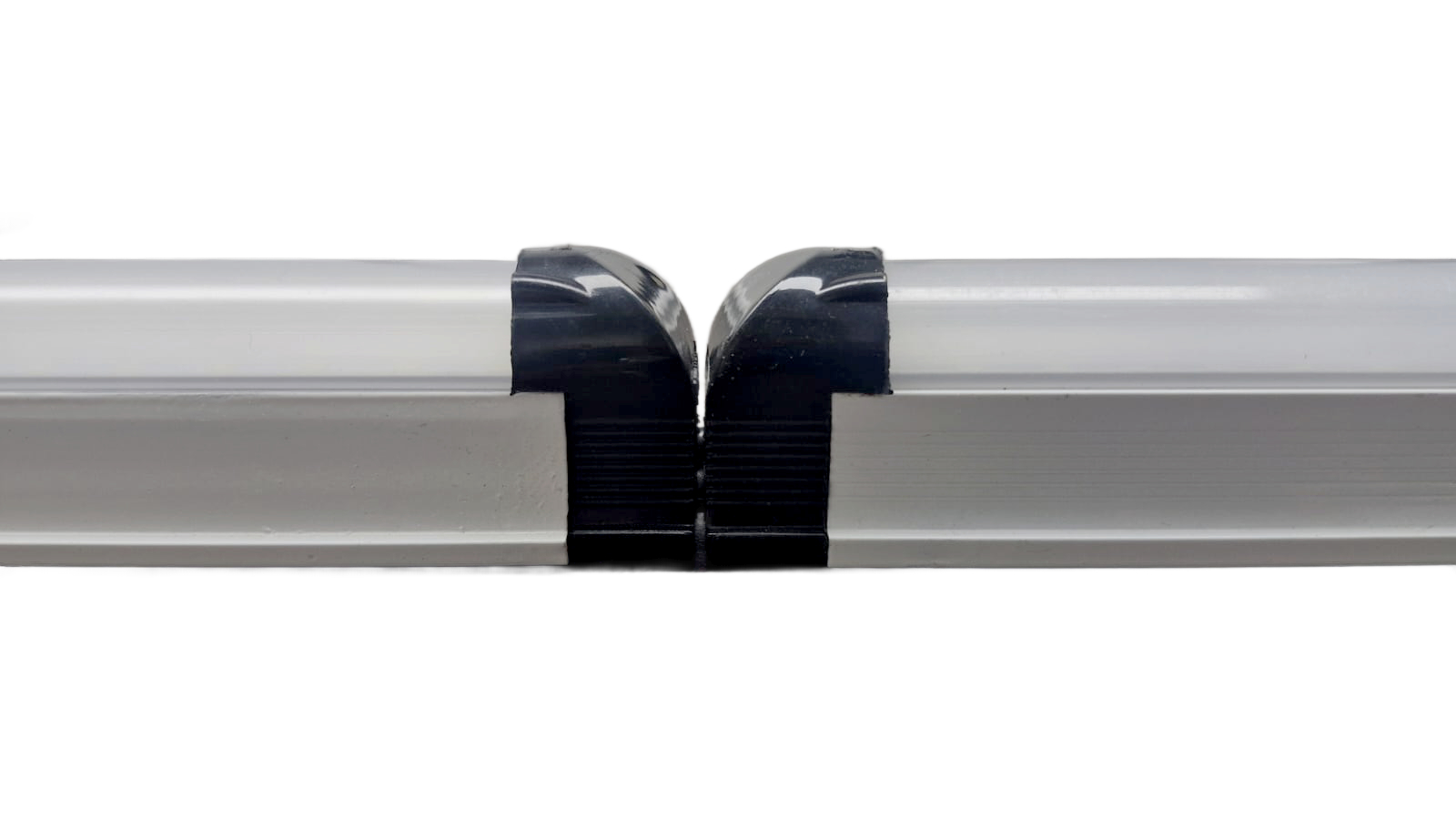

- C3-type Connectors
- C2 White
- C2 Black
- Direct Wire
What it is and who it is for

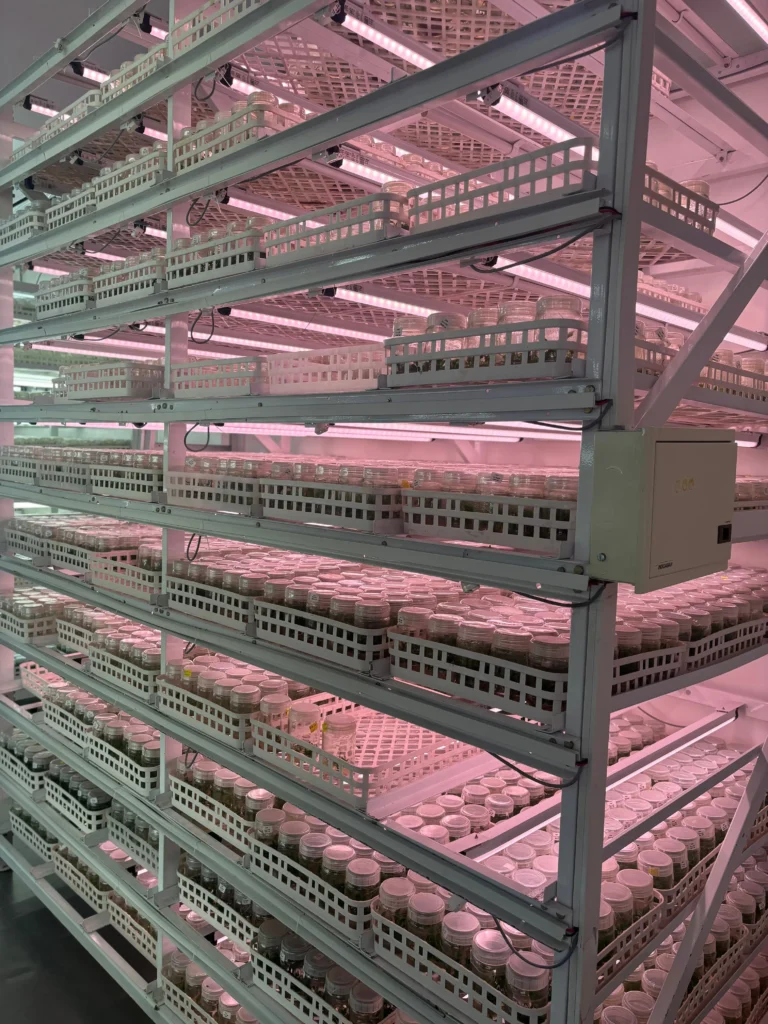

The 2ft 9W TSGL8 is Nexsel's short tissue-culture bar. It replaces the fluorescent tubes on a culture rack with a 0.6 metre LED fixture that has no ballast, no reflector and no UV, so shelf after shelf can be lit with the same slim 30 x 35 mm profile.
This listing is the Nx6.1 spectrum: a red-dominant mix (52% red, 17% blue, 30% green) with no UV and almost no far-red, intended for in-vitro work. The fixture is designed to stay cool, which matters in a culture room where heat on a shelf changes the conditions inside every vessel. Compare Nx6.1 and Nx6.2 in the Spectrum Selection Guide.
Who it suits:
- Commercial tissue-culture and micropropagation labs with short rack tiers
- University, ICAR and research-institute culture rooms
- Banana, orchid, potato and ornamental micro-propagation units
- Labs replacing fluorescent tubes on compact culture racks
Installation and electrical
Mount with holding clamps or a cable tie, and connect with the C3-type connectors used across the TSGL8 and HYGL8 family (the sheet also lists C2 white, C2 black and direct-wire options). Because the bar runs without ballasts or reflectors, a rack tier needs one cable run instead of a tube-and-ballast set; Nexsel states up to 80% less wiring per layer and 60-70% less installation time (manufacturer figures).
See the TSGL8 installation guide for mounting and wiring, and the TSGL8 model page for the model overview.
Choosing the right Nexsel model
TSGL8 Nx6.1 is the tissue-culture bar; this is the 0.6 m length. The 4 ft 18 W page uses the same spectrum. TSGL8 Nx6.2 (more red) is listed for microgreens.
- 4ft 18W Grow Light for Tissue Culture
- 2ft 9W Grow Light for Microgreens
- 2ft 9W Grow Light for Leafy Vegetables
Measure intensity at vessel level with a PAR meter / quantum sensor.
Warranty, delivery and returns
24-month standard warranty from the date of shipment.
Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.
Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.
About Nexsel
Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].
Frequently Asked Questions
What LED spectrum does Nexsel recommend for tissue culture?
The TSGL8 tissue-culture bar uses Nx6.1: 52% red, 30% green, 17% blue and 1% far-red, with no UV. ePAR coverage is 99. It is Nexsel's specified spectrum for this product; confirm it suits your species before converting a whole room.
Does the bar run cool enough for culture vessels?
Nexsel describes the TSGL8 as staying cool thanks to its internal heat-dissipation design, and the rated operating range is 0 to 55 C. It does not publish a surface-temperature figure, so measure at the vessel for your room.
How far should the bar be from the culture vessels?
Nexsel measured intensity at 30 cm and 45 cm, and the drop with height is modest. Set the gap for your target intensity and check it at vessel level with a PAR meter.
How much power does one 2 ft TSGL8 bar use?
9 W, or 0.009 kW. At an example 16 hours a day it uses 0.144 kWh daily, about 4.3 kWh a month. Multiply by your tariff for the cost; the 16-hour day is only an example.
Does it contain UV or far-red?
It contains no UV (0%) and only 1% far-red. Blue is 17%, green 30%, red 52%. If you need a different mix, Nexsel lists other spectra and can customise.
Is it dimmable, and what warranty does it carry?
Triac dimming is optional on the data sheet, so state it when ordering. The standard warranty is 24 months from the date of shipment. Dispatch is within 7 working days; prices exclude GST.
