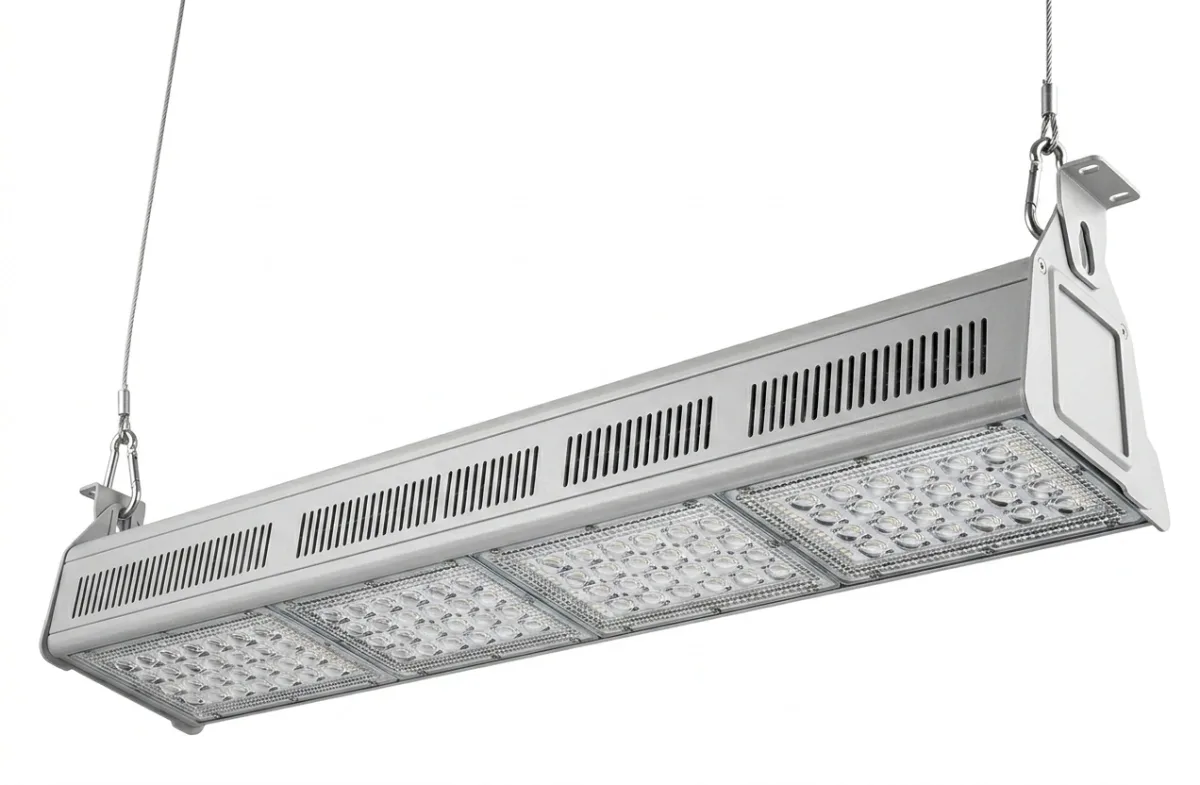

3 FT 200W Plant Top Light for Green House
3 FT 200W Plant Top Light for Green House
In Stock
Model : TL 200
Length & Wattage : 1.2 meter | 200W
Available Spectrums : Nx4B
IP Rating : IP65
Warranty : 36 months
200 watts LED grow light with optimum full spectrum layout and ePAR coverage. Reflector design with excellent heat dissipation, IP65 rated — best for commercial growing.
Key Features, Benefits & Advantages
Top Features
- 200 watts
- Passive cooling
- High-intensity LEDs, PPE up to 3.4 µmol/J
- Up to 1 metre height adjustment
- Broad spectrum with ePAR coverage
- Available with 60°, 90° and 120° beam angle
- Backed with 36-month warranty
Benefits & Advantages
- High output, low power — 200 W LED performance equivalent to 600 W metal halide, with up to 60% energy savings.
- Efficient growth lighting — High-intensity LEDs with up to 3.4 µmol/J PPE and broad-spectrum ePAR for optimal plant growth.
- Flexible installation — Adjustable height up to 1 metre, with beam angles of 60°, 90° and 120°.
- Long life and thermal efficiency — Superior heat dissipation ensures stable performance and an extended lifespan.
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 180 to 240 |
| Input Power (Watts) | 200 |
| Input Current (Amps) | 0.88 |
| Inrush Current (Amps) | 2 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| Plug Socket | NA |
| THD | Less than 10 |
| Power Factor | 0.9 |
| Dimming Interface | Manual / IOT / NA |
| Surge Protection (kV) | 4 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 1154 x 115 x 144 |
| Weight (kg / lb) | 7.1 / 15.65 |
| Material | Aluminium |
| Fixture Colour | Gray |
| Beam Angle / Light Distribution | 60° / 90° / 120° |
| Form Factor | Linear |
Performance Parameters
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
| PPE (µmol/J) | Up to 3.4 |
Environmental Parameters
| Operating Temperature (°C) | 0 to 40 |
| Operating Humidity (%) | 100 |
| IP Rating | IP65 |
Dimension Parameters
| L (mm) | 1154 |
| W (mm) | 115 |
| H (mm) | 144 |
| L' (mm) | 13.5 |
Dimension Drawing
Spectrum Details
Photon flux distribution, measured per fixture.
| Spectrum | UV | B | G | R | FR | PAR | ePAR | CCT | CRI | B:G | R:FR | R:B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nx4B | 0 | 11% | 33% | 45% | 11% | 100 | 89 | 3190K | 94 | 0.34 | 4 | 4 |
PPFD Intensity Chart
Installation, Connectivity & Options
Mounting Options
-
Rope Ratchet
-
Metal Ratchet
Connecting Options
- 2Ft input AC cable (customizable)
-
IP65 Connector
Intensity Control Options
-
Fixed Intensity
— FG0204
-
Manual Control
— FG0224
-
IOT Control
— FG0225
Variants
- Wattage — 400 watts, 200 watts, 100 watts, 50 watts
- Size — 1.2 meter, 0.9 meter, 0.6 meter, 0.3 meter
- Spectrum Options — Nx4B
Visuals
Need a Custom Solution?
Our team can design custom spectrum and lighting solutions tailored to your specific crop requirements.
