3ft 14W LED Grow Light for Ornamental Plants (Rack)
3ft 14W LED Grow Light for Ornamental Plants (Rack)
Model : HYGL8 Nx4B (0.9 m)
Length & Wattage : 3ft | 14W
Available Spectrums : Nx4B
IP Rating : IP54
Warranty : 24 months
Product Code : FG0040
Delivery Charges : 400Rs
The Nexsel HYGL8 Nx4B (0.9 m) (3ft 14W LED Grow Light for Ornamental Plants (Rack)) is a 14 W LED grow light from Nexsel Tech Pvt. Ltd., Pune, India. It uses the Nx4B spectrum, is rated IP54 and measures 900 x 30 x 35 mm, 24-month standard warranty. Orders dispatch within 7 working days and prices exclude GST.
Key Features, Benefits & Advantages
Top Features
- Broad spectrum with ePAR coverage (400-750 nm)
- 14 W in a 0.9 m, 0.2 kg bar; 120 degree beam
- Flicker-free output (optional) for better photosynthesis (Nexsel claim)
- 20% less electricity for the same intensity (Nexsel claim)
- C3 connectors; 80/20 diffuser
- PPE 2.2 to 2.4 µmol/J; 110-130 lm/W
Technical Specifications
Electrical Parameters
| Input Voltage (V AC) | 220 to 240 |
| Input Power (Watts) | 14 |
| Input Current (Amps) | 0.068 |
| Frequency (Hz) | 50 |
| Light Source | SMD LED |
| THD | Less than 10% |
| Power Factor | 0.9 |
| Dimming Interface | Triac dimming (optional) |
| Surge Protection (kV) | 1 |
Mechanical Parameters
| Dimensions (L×W×H) mm | 900 x 30 x 35 |
| Weight (kg / lb) | 0.2 / 0.4 |
| Material | Aluminium |
| Fixture Colour | White |
| Beam Angle / Light Distribution | 120° |
| Form Factor | Linear |
Performance Parameters
| PPE (µmol/J) | 2.2 to 2.4 |
| Luminous Efficacy (lm/W) | 110 to 130 |
| LED Lifespan (Hrs) | 50,000 |
| Certifications | BIS, CE, RoHS |
Environmental Parameters
| Operating Temperature (°C) | 0 to 55 |
| Operating Humidity (%) | Up to 95 |
| IP Rating | IP54 |
Installation, Connectivity & Options
Mounting Options
- Holding Clamps
- Cable Tie
Connecting Options
- 2-pin Top Input
- Inter-connectors
- F2F Connectors
What it is and who it is for

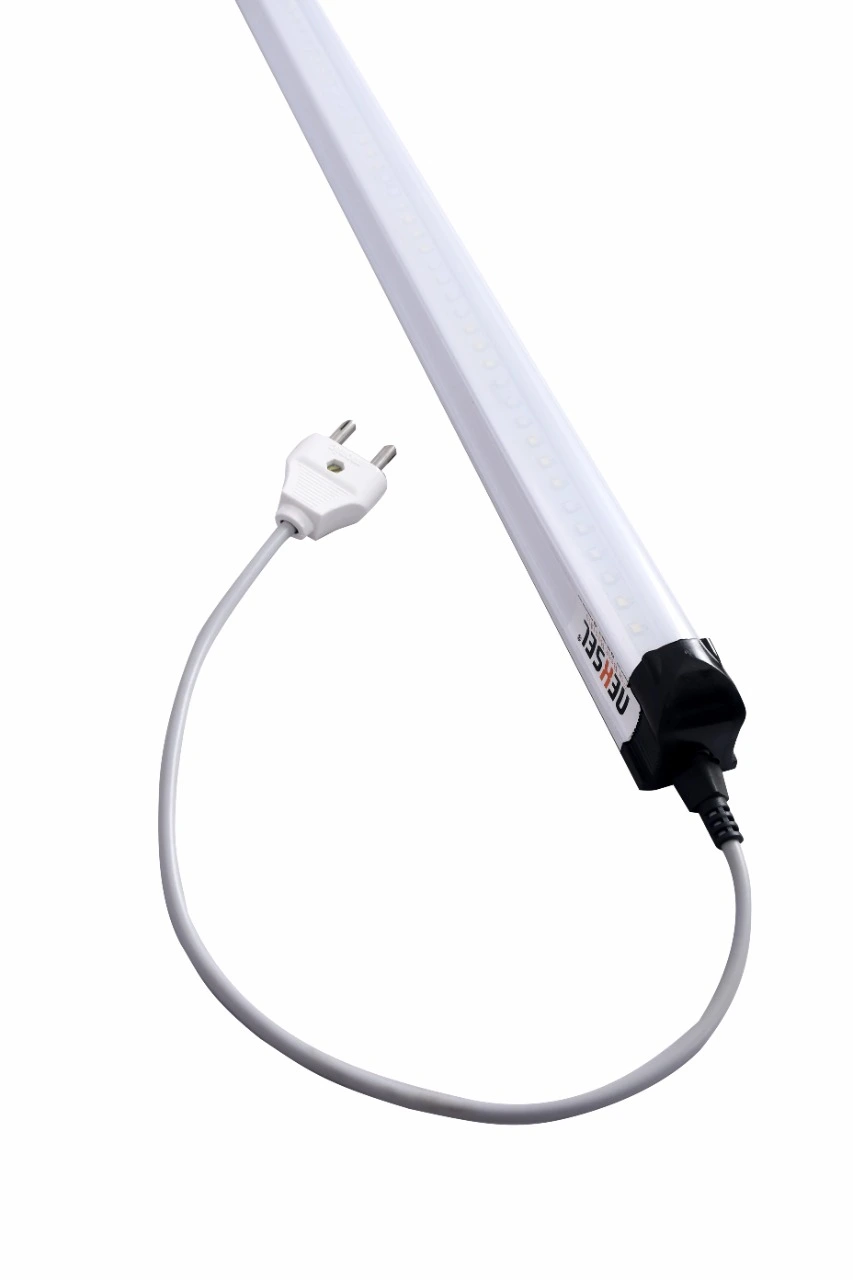

A 3 ft shelf needs a bar that matches its length so the light is even from end to end. The 3ft 14W HYGL8 is a 0.9 m linear LED bar with a 30 x 35 mm aluminium profile, designed to mount under a shelf and run on the broad Nx4B spectrum (400 to 750 nm ePAR coverage).
Nexsel lists better coloration, proper leaf texture and uniform light quality for this bar (manufacturer claims), plus optional flicker-free output. One bar reads a peak of 44 at 30 cm and 24 at 45 cm in Nexsel's test grid, so you can size how many bars a shelf needs.
Who it suits:
- Nursery and garden-centre display racks with 3 ft shelves
- Houseplant and indoor-garden shelf builders
- Retail and hospitality plant displays
- Growers of ornamental foliage and flowering pot plants
Specifications source: Nexsel data sheet, HYGL8 Nx4B 0.9 m (FG0040).
Spectrum - Nx4B
The Nx4B spectrum is described on the data sheet as a broad spectrum with ePAR coverage from 400 to 750 nm. Detailed percentages, colour temperature, CRI and ratios will be published once Nexsel issues its corrected data sheet. Compare spectra in the Spectrum Selection Guide.
Light intensity at the plant (PPFD)
Measured under one luminaire over a 0.9 m x 0.3 m area: peak 44 at 30 cm (18 to 44 across the grid) and peak 24 at 45 cm (13 to 24). A 2.6-3.1 PPE version peaks at 49 at 30 cm and 29 at 45 cm. Values are PPFD in µmol/m²/s.
30 cm above the sensor
| Grid row | Left | Centre | Right |
|---|---|---|---|
| Row 1 | 19 | 24 | 18 |
| Row 2 | 34 | 44 | 33 |
| Row 3 | 20 | 25 | 21 |
45 cm above the sensor
| Grid row | Left | Centre | Right |
|---|---|---|---|
| Row 1 | 14 | 19 | 13 |
| Row 2 | 16 | 24 | 16 |
| Row 3 | 13 | 20 | 14 |
How to use these numbers: daily light integral (DLI, mol per m² per day) = PPFD x hours of light x 0.0036. Pick the PPFD your plants need, then choose mounting height and number of fixtures to reach it. Measure intensity at shelf level with a PAR meter / quantum sensor.
Installation and electrical
Mount with holding clamps or a cable tie; power enters through a 2-pin top input and bars chain with inter-connectors or F2F connectors. The 0.9 m profile fits a 3 ft shelf, and Nexsel states up to 80% less wiring per layer and 60-70% faster installation (manufacturer figures).
See the HYGL8 model page for the model overview.
Choosing the right Nexsel model
The 3 ft 14 W Nx4B bar is the mid-length rack and display bar. The 4 ft 36 W Nx4B bar has more power; the 2 ft 9 W bar fits short shelves.
- 4ft 36W Grow Light for Ornamental Plants (Rack)
- 2ft 9W Grow Light for Ornamental Plants (Rack)
- 75W Grow Light for Balcony & Ornamental Plants
Related reading: Indoor Gardening: Techniques, Benefits and Best Practices.
Warranty, delivery and returns
24-month standard warranty from the date of shipment (Nexsel Warranty Policy).
Orders are dispatched within 7 working days and are delivered within 7 days of dispatch. Prices on this page exclude GST, which is added at checkout. Delivery is charged as shown at checkout.
Returns are accepted within 7 days of receipt if the product is damaged, defective or not as described.
About Nexsel
Founded in 2017, Nexsel Tech Pvt. Ltd. is a horticulture lighting manufacturer based in Pune, India, serving over 4,000 customers across 16 countries and 4 continents. With a 10,000 sq. ft. plant research facility and 120+ plant lighting recipes, Nexsel delivers research-driven lighting solutions. Need a layout? Call 98817 98822 or email [email protected].
Frequently Asked Questions
What grow light fits a 3 ft plant shelf?
The HYGL8 14 W bar is 0.9 m (3 ft) long and 30 x 35 mm in section, so it spans a 3 ft shelf from end to end. It uses the broad Nx4B spectrum (400 to 750 nm ePAR) and mounts under the shelf with clamps or a cable tie.
How bright is the bar at 30 cm?
Nexsel measured peak 44 at 30 cm for one bar (18 to 44 across a 0.9 m x 0.3 m area) and peak 24 at 45 cm. These are PPFD values in umol per m2 per second; use them to size how many bars a shelf needs.
How much does it cost to run?
14 W is 0.014 kW. For an example 12 hours a day it uses 0.168 kWh daily, about 5 kWh a month. Multiply by your tariff; set your own photoperiod.
How is it different from the 4 ft 36 W Nx4B bar?
The 3 ft bar has 14 W against 36 W, draws 0.068 A against 0.15 A and weighs 0.2 kg against 0.55 kg. Both share a 30 x 35 mm profile and IP54 rating; choose by shelf length and the intensity you need.
Is it safe to use in indoor displays?
It is IP54 rated, meaning dust-protected and splash-resistant, and certifications on the data sheet are BIS, CE and RoHS. Keep it out of direct spray and install it by the connector guide.
What are the warranty, dispatch time and returns?
The standard warranty is 24 months. Orders dispatch within 7 working days and arrive within 7 days of dispatch. Prices exclude GST. Returns are accepted within 7 days if the item is damaged, defective or not as described.
